ASTM A269 Tp316L 19.05X2X6100mm Stainless Steel Seamless Tube/Pipe
Product Name: ASTM A269 TP316L 19.05X2X6100MM Stainless Steel Seamless Tube/PipeSpecification: ASTM A269/A269MGrade: TP316L/S31603Chemical Composition(%):CMnPSSiCrNiMo≤0.035≤2.00≤0.045≤0.030≤1.0016.0-18.010.0-14.02.00-3.00Size:ASME B36.19M/ASME B36.10M or Customiz......
Send Inquiry
Product Description
Specification: ASTM A269/A269M
Grade: TP316L/S31603
Chemical Composition(%):
| C | Mn | P | S | Si | Cr | Ni | Mo |
| ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
Size:ASME B36.19M/ASME B36.10M or Customized
From OD DN6 [NPS1/8"] TO DN500 [NPS20"], THICKNESS SCH 5/5S 10/10S 20 30 40/40S 60 80/80S 120 140 160 STD XS XXS, LENGTH 0.5M-11.8M
Dimension Tolerance: as per ASTM A999/A999M
Producing Process: Cold Pilger, Cold Rolled, Cold Drawn
Heat Treatment: Solution Annealing with Temperature 1040ºC Min.
Tension Properties: Tensile Strength ≥ 485MPa [70ksi], Yield Strength ≥ 170MPa [25ksi], Longitudinal Elongation ≥ 35%
Surface Finish: Pickled, Passivated, Mechanical Polished
Pipe End Preparation: Plain End [PE], Bevel End [BE], Square Cut

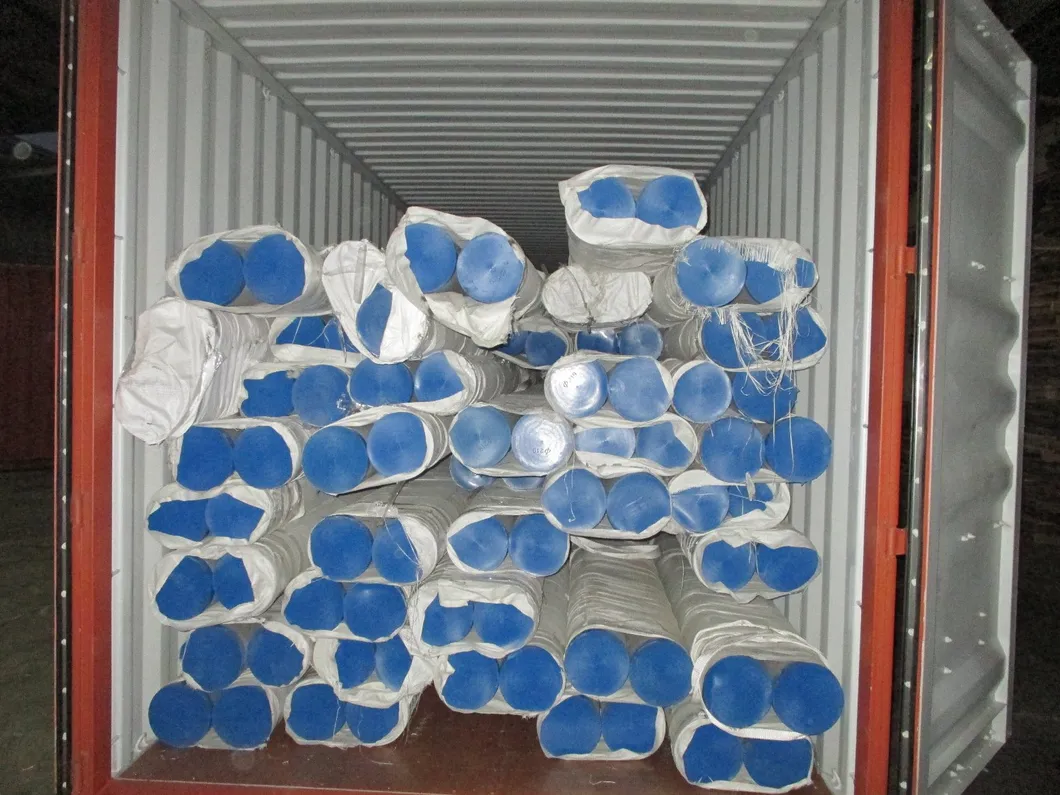

Package Style: Bundle with fabric film, Plywood Case
Any questions, please feel free to contact us!
