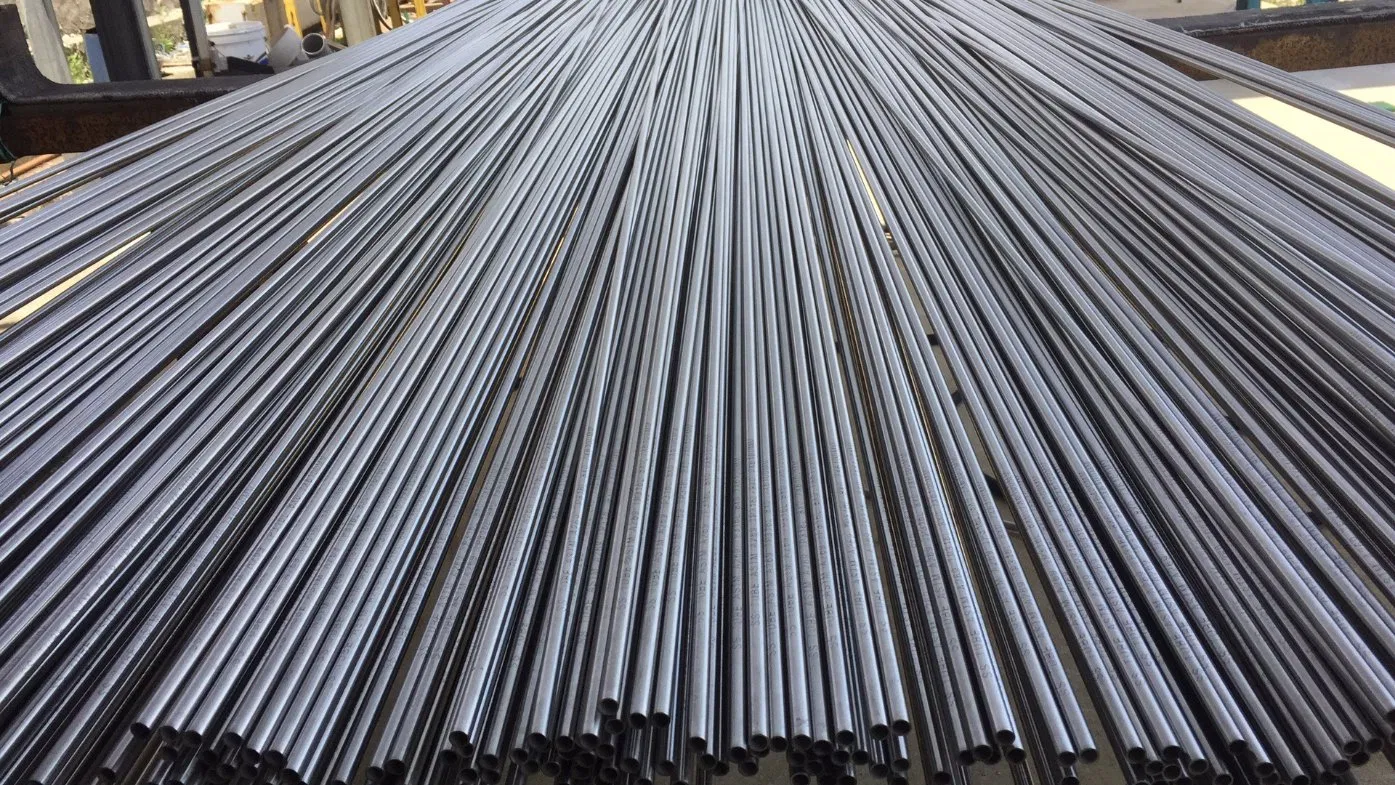

ASTM A269 Tp316L 8X0.7X6100mm Polished Stainless Steel Seamless Tube
Product Name: Stainless Steel Seamless TubeSpecification: ASTM A269Grade: TP316L/S31603Chemical Composition(%):CMnPSSiCrNiMo≤0.035≤2.00≤0.045≤0.030≤1.0016.0-18.010.0-14.02.00-3.00Size:ASME B36.19M/ASME B36.10M or CustomizedOD 3MM~50.8MM, WT 0.5MM~5MM, LEN......
Send Inquiry
Product Description
Product Name: Stainless Steel Seamless Tube
Specification: ASTM A269
Grade: TP316L/S31603
Chemical Composition(%):
| C | Mn | P | S | Si | Cr | Ni | Mo |
| ≤0.035 | ≤2.00 | ≤0.045 | ≤0.030 | ≤1.00 | 16.0-18.0 | 10.0-14.0 | 2.00-3.00 |
Size:ASME B36.19M/ASME B36.10M or Customized
OD 3MM~50.8MM, WT 0.5MM~5MM, LENGTH 0.5M-11.8M
Dimension Tolerance: as per ASTM A999/A999M

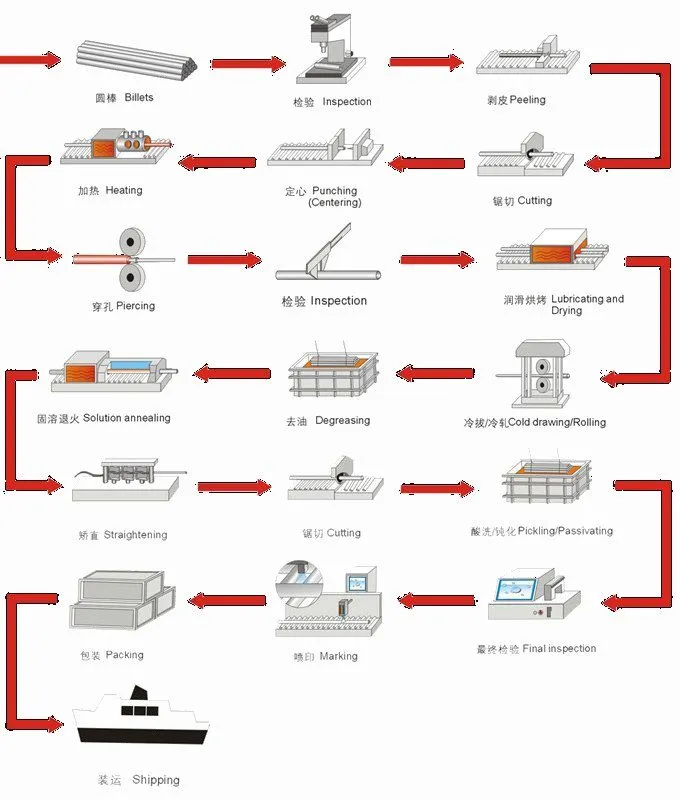

Producing Process: Cold Pilger, Cold Rolled, Cold Drawn

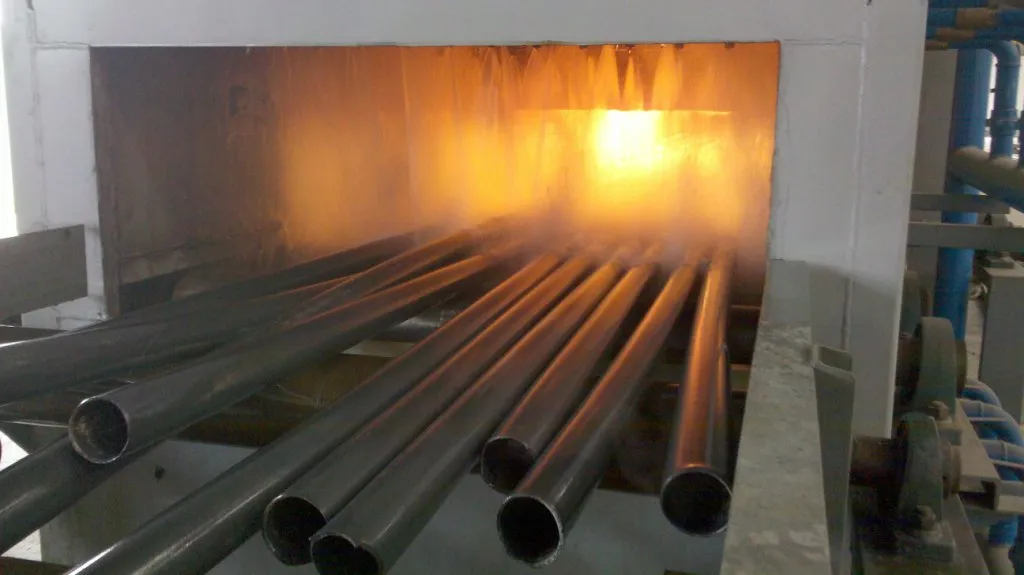

Heat Treatment: Solution Annealing with Temperature 1040ºC Min.
Tension Properties: Tensile Strength ≥ 485MPa [70ksi], Yield Strength ≥ 170MPa [25ksi], Longitudinal Elongation ≥ 35%

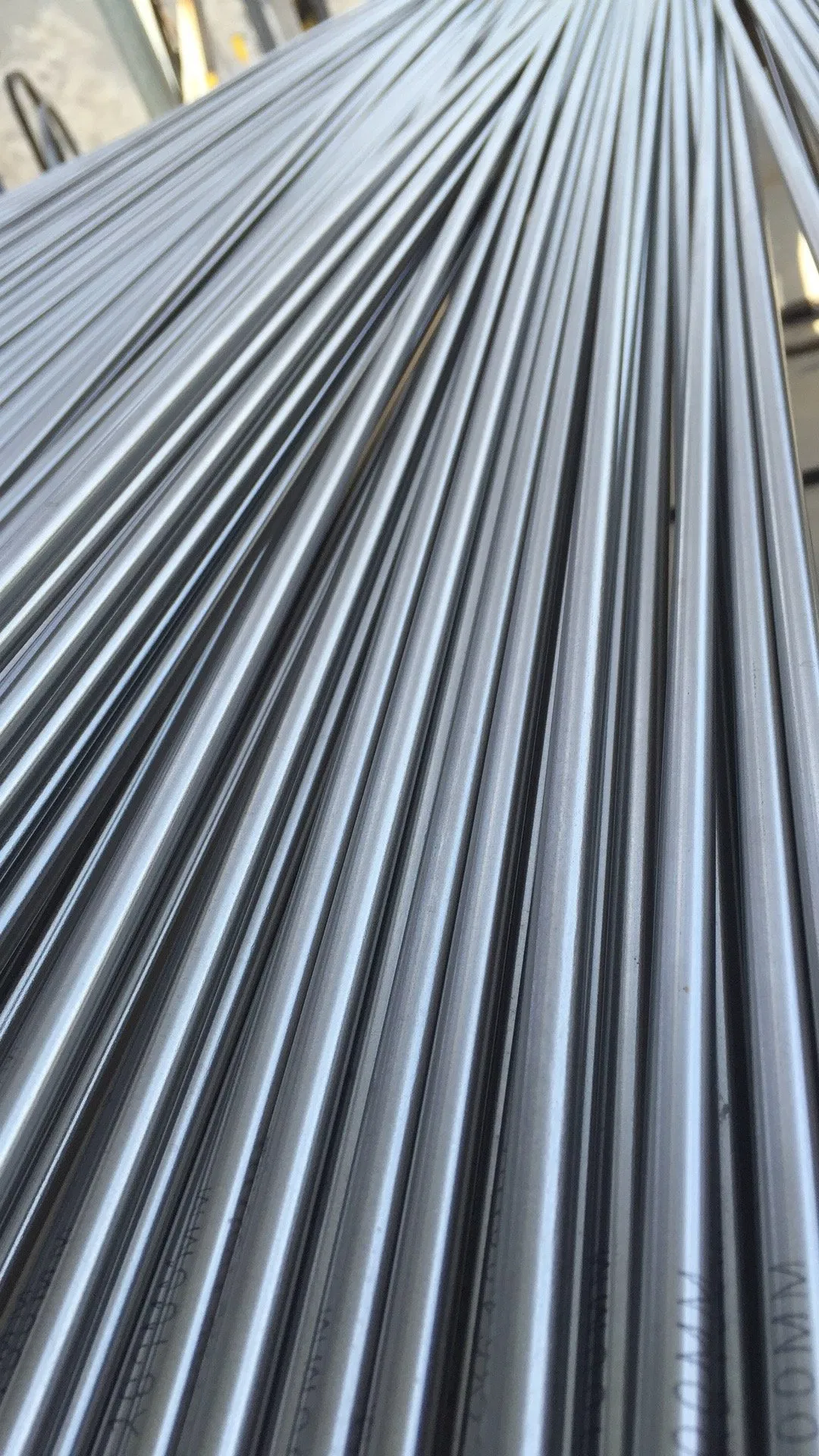

Surface Finish: Pickled, Passivated, Mechanical Polished
Pipe End Preparation: Plain End [PE], Bevel End [BE], Square Cut

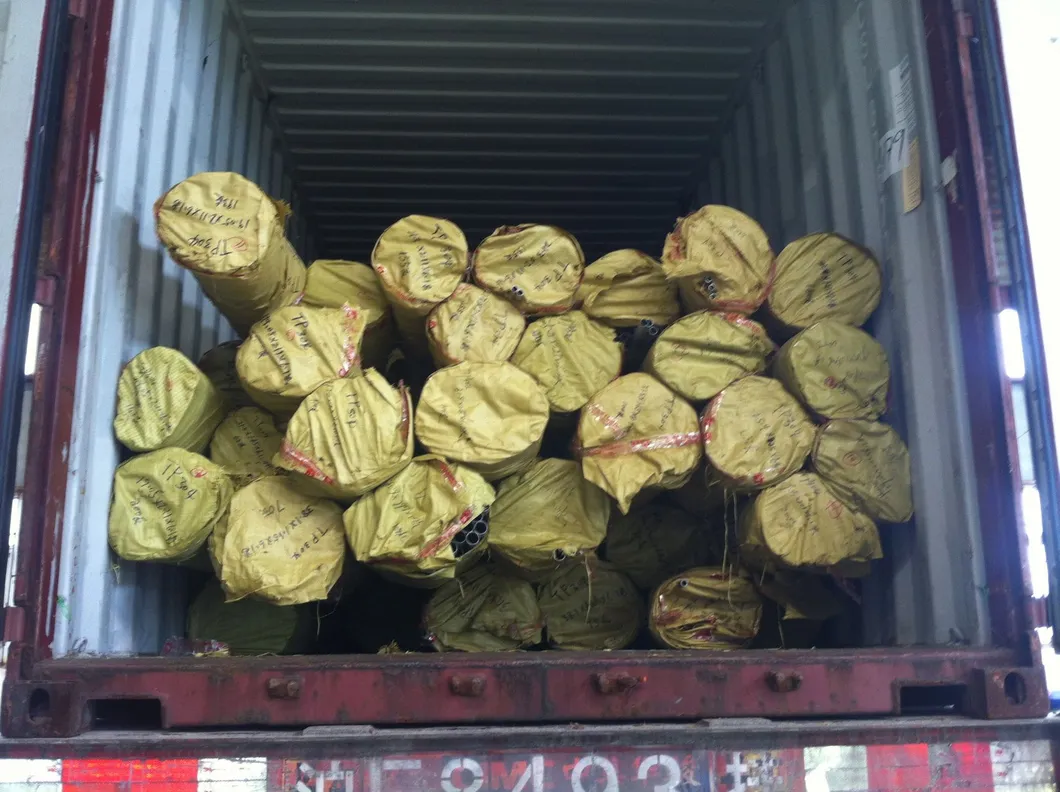

Package Style: Bundle with fabric film, Plywood Case
Any questions, please feel free to contact us!
