JIS G3345 Grade Stkm11A Low Carbon Steel Tube

Product Description

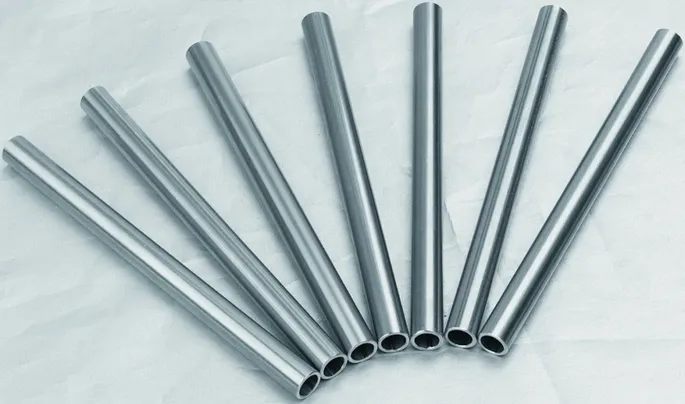

JIS G3345 Grade Stkm11A Low Carbon Steel Tube

To be used in Automobile and precision machinery parts, for cars and cylinder, pressure use etc.

OD: 4-102mm
Wall thickness: 0.5-10mm

Production Standard and Steel Grade:
DIN2391 (St35, St45, St52)
ASTM A519 (1010, 1020, 1025, 1035, 1045)
ASTM A513 (1010, 1020, 1025, 1035, 1040)
BS6323 (CFS, CFS3A, CFS4-11)
EN10305-1 (E215, E235, E355)
JIS G3441 (SCM415TK, SCM430TK, SCM440TK)
GB/T3639 (10#,20#,35#,45#)

Delivery Situation:
BK, BKW, BKS, NBK, GBK

Type: Seamless

Length: 3 - 10 m, approximate length with tolerance +/-10 mm

JIS G3345 Grade Stkm11A Low Carbon Steel Tube

Application:
Hydraulic system
Automobile
Precision machinery parts for cars and cylinder.
Auto industry
Oil cylinder tube

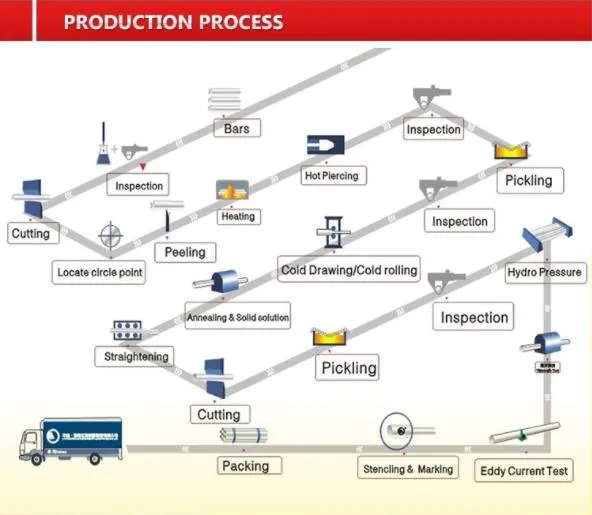

Manufacture Process:
Synopsis of Process Routing: Quality Carbon steel - Cold Drawn - Heat Treatment Without Oxidization (NBK Status) - Nondestructive Testing- Flushing The Internal Hole With Special Equipment Under The High Pressure -Dealing With Antirust Oil On Surface - Plastic Capping On Both Ends.

Standard	Material
EN10305-1	E215, E235, E255, E355,C45E, 30GrMo
DIN2391	ST35, ST45, ST52, ST37.4
DIN1630	ST37.4,ST44.4,ST52.4
BS6323/4	CFS3,CFS4,CFS5,CFS8
ASTMA519	SAE1010,SAE1020,SAE1045
JISG3445	STKM11A,STKM13A
SAEJ524	SAE1010

Delivery Condition	Heat Treatment Process
+C	Cold drawn/hard. After the last cold forming, no heat treatment.
+LC	Cold drawn/soft.After the last heat treatment follows the cold drawing there is a light finishing pass.
+SR	Cold drawn and stress relieved annealed. After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere.
+A	After the final cold drawing process the tubes are stress relieved annealed in a controlled atmosphere.
+N	Normalized. After the last cold drawing process the tubes are annealed in a controlled atmosphere.

Applications

Standards	Classifications		Descriptions	Applications
JIS3445 Carbon Steel Tube For Mechanical Structure	Class 11	A	STKM11A	Exhaust Pipe, Steering, Shock Absorber, Outer Diameter, Safety Handle, Print Roll, Motor Cover, Furniture
	Class 12	A	STKM12A	Cross Member, Axle Tube, Mechanical Roll, Bearing, Back Metal
		B	STKM12B	Propeller, Shaft, Oil Pressure, Cylinder
		C	STKM12C	Front Took, Front Hook
	Class 13	A	STKM13A	Propeller Shaft, Steering System, Cross Member, Kiru Pipe
		B	STKM13B	Oil Pressure Clinder, Breaking Back Metal, Mechanical Roll, Axle Tube, Propeller Shaft, Steering System
		C	STKM13C	Propeller Shaft, Axle Tube, Steering System
	Class 14	A	STKM14A	Steering System
		B	STKM14B	Cross Member, Push Tube, Axle Housing
		C	STKM14C	Axle Tube, Oil Pressure Cylinder
	Class 15	A	STKM15A	Cross Member, Frame Valve Locker Shaft, Side Member, Axle Tube, Steering System, Exhaust Tube
	Class 15	C	STKM15C	Propeller Shaft
