Product Description

Q235 40Cr S20c S45c 4340 4130 8620 52100 Forged Steel Flat Plate

42CrMo4 En24 817m40 Scm415 8620 En8d Forged Die Tool Block Flat Steel

1: EN C45 steel introduction
EN C45 steel is an unalloyed medium carbon steel, which is also a general carbon engineering steel. C45 is a medium strength steel with good machinability and excellent tensile properties. C45 round steel is generally supplied in the black hot rolled or occasionally in the normalised condition, with a typical tensile strength range 570 - 700 Mpa and Brinell hardness range 170 - 210 in either condition. It does not however respond satisfactorily to nitriding due to a lack of suitable alloying elements.

2: EN C45 Steel equivalent

Country	China	Japan	Germany	USA	UK
Standard	GB/T 699	JIS G4051	EN 10083-2	ASTM A20	EN / BS
Grade	45	S45C	C45/1.1191	1045	EN8D/C45E

3: EN C45 steel chemical composition

Grade	Grade	C	Mn	P	S	Si	Ni	Cr
ASTM A29	1045	0.43-0.50	0.60-0.90	0.04	0.050
EN 10083-2	C45/1.1191	0.42-0.50	0.50-0.80	0.03	0.035	0.4	0.4	0.4
JIS G4051	S45C	0.42-0.48	0.60-0.90	0.03	0.035	0.15-0.35

4: EN C45 steel mechanical properties

Grade	Tensile strength	Yield strength	Elongation	Reduction	Impact Value	Hardness
EN C45			17%	45%

5:EN C45 steel overviews

Size	Round	Dia 6-1200mm
	Plate/Flat/Block	Thickness 6mm-500mm
		Width 20mm-1000mm
Process	EAF+LF+VD+Forged+Heat treatment(optional)
Heat treatment	Normalized ; Annealed ; Quenched ; Tempered
Surface condition	Black; Peeled; Polished; Machined; Grinded; Turned; Milled
Delivery condition	Forged; Hot rolled; Cold drawn
Test	Tensile strength, Yield strength, elongation, area of reduction, impact value, hardness, grain size, ultrasonic test, US inspection, magnetic particle testing, etc.
Payment terms	T/T;L/C;/Money gram/ Paypal
Trade terms	FOB; CIF; C&F; etc..
Delivery time	30-45 days
Application	EN C45 steel is used for axles, bolts, forged connecting rods, crankshafts, torsion bars, light gears, guide rods, screws, forgings, wheel tyres, shafts, sickles, axes, knives, wood working drills, hammers, gears, bolts, general-purpose axles and shafts, keys and studs, etc.

6: Delivery condition
For hot forged or hot rolled bar, usually the delivery condition is hot forged or rolled, annealed, rough turned.

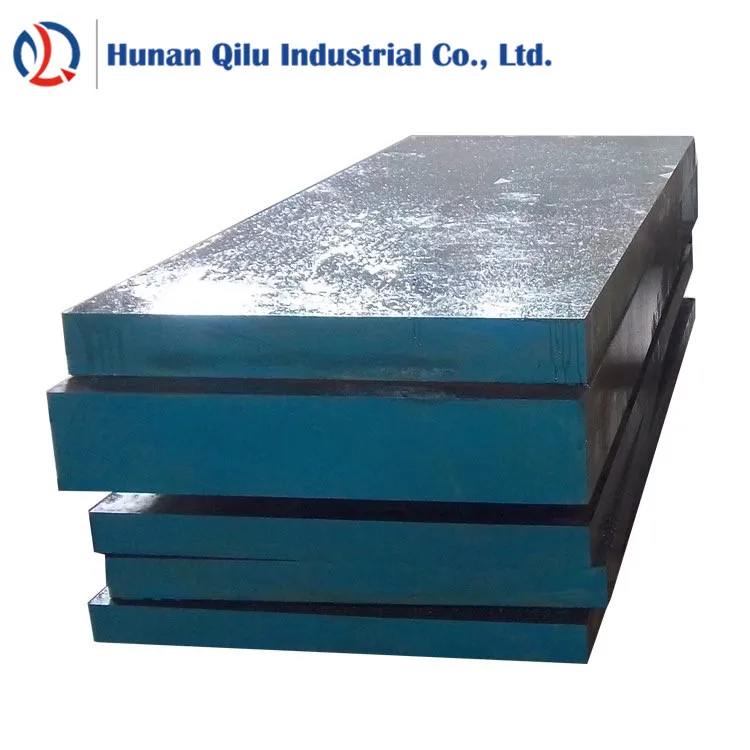

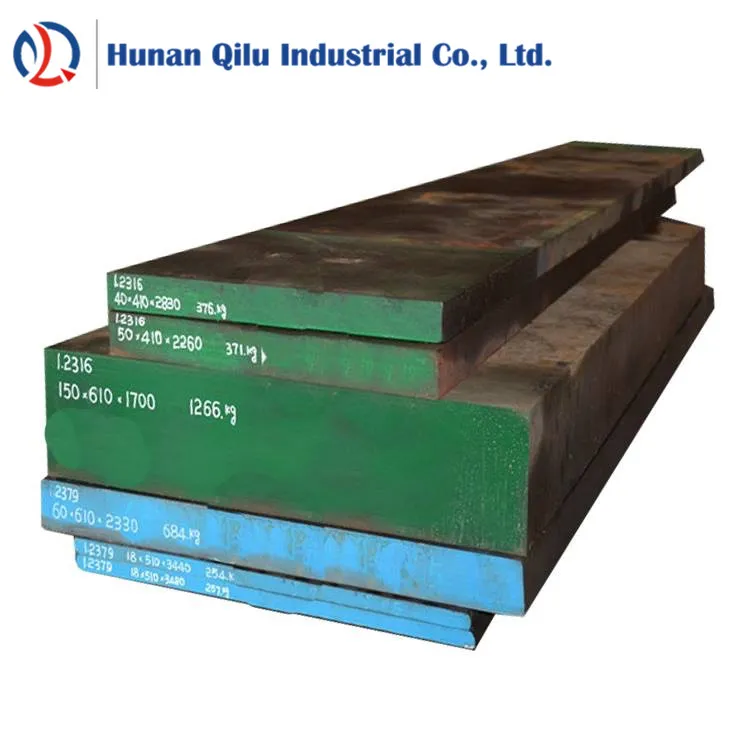

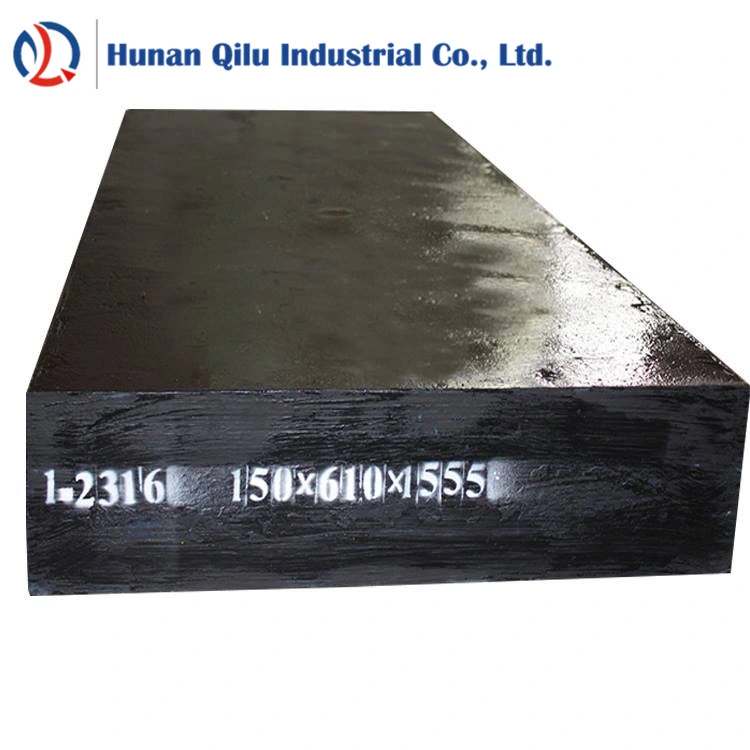

For hot forged plate, usually the delivery condition is hot forged, annealed, milled surface.
For hot rolled plate, usually the delivery condition is hot rolled, annealed, black surface.

42CrMo4 En24 817m40 Scm415 8620 En8d Forged Die Tool Block Flat Steel

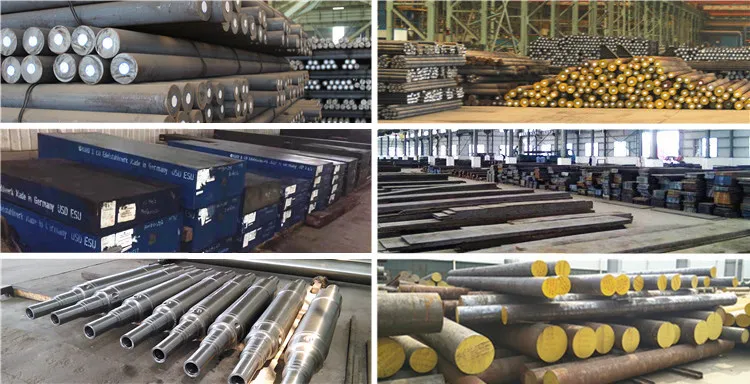

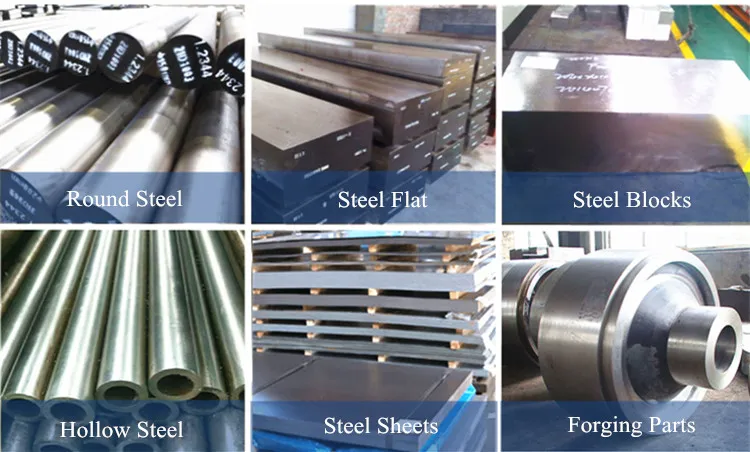

Hunan Qilu Industrial Co., Ltd has the capacity to forge round steel, steel flat, square steel, module, shaft and roller, etc. The main specifications of the products include Φ80-1000mm forging materials and 80-1200mm square billets and which the maximum piece weight can reach 50T.

42CrMo4 En24 817m40 Scm415 8620 En8d Forged Die Tool Block Flat Steel

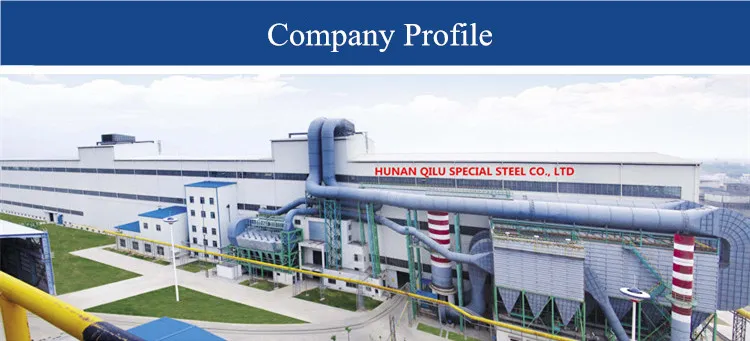

Hunan Qilu Industrial Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Industrial also has their own heating treatment shop and machining shop to provide heating and cutting service.

Since 2008 year, Hunan Qilu Industrial has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.

Qilu Industrial is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.

42CrMo4 En24 817m40 Scm415 8620 En8d Forged Die Tool Block Flat Steel

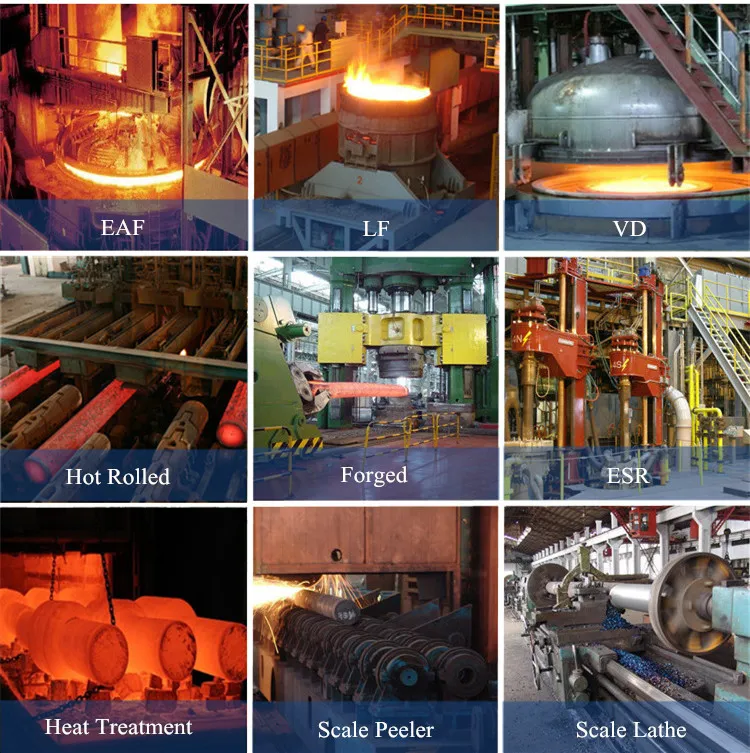

The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.
