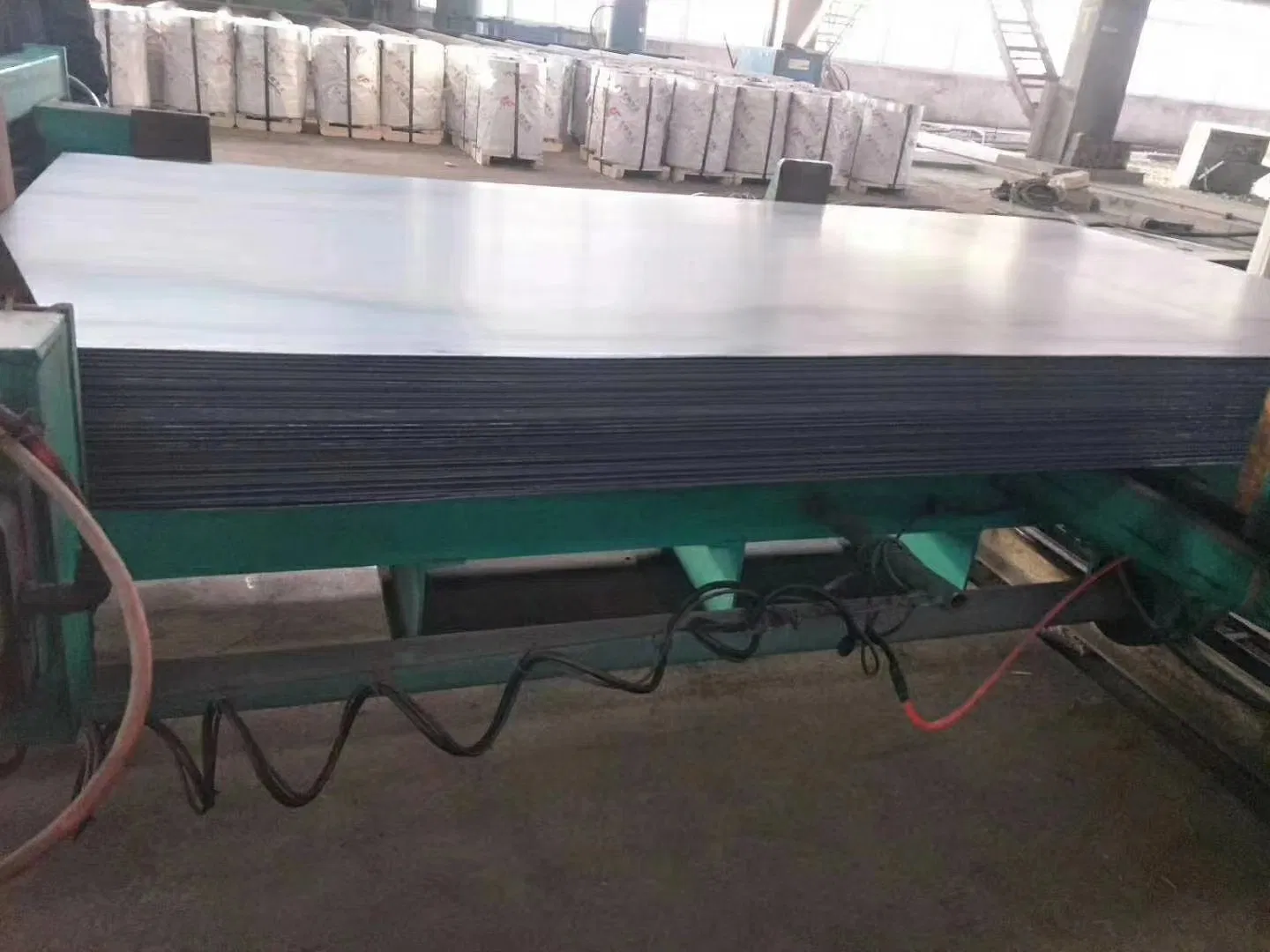

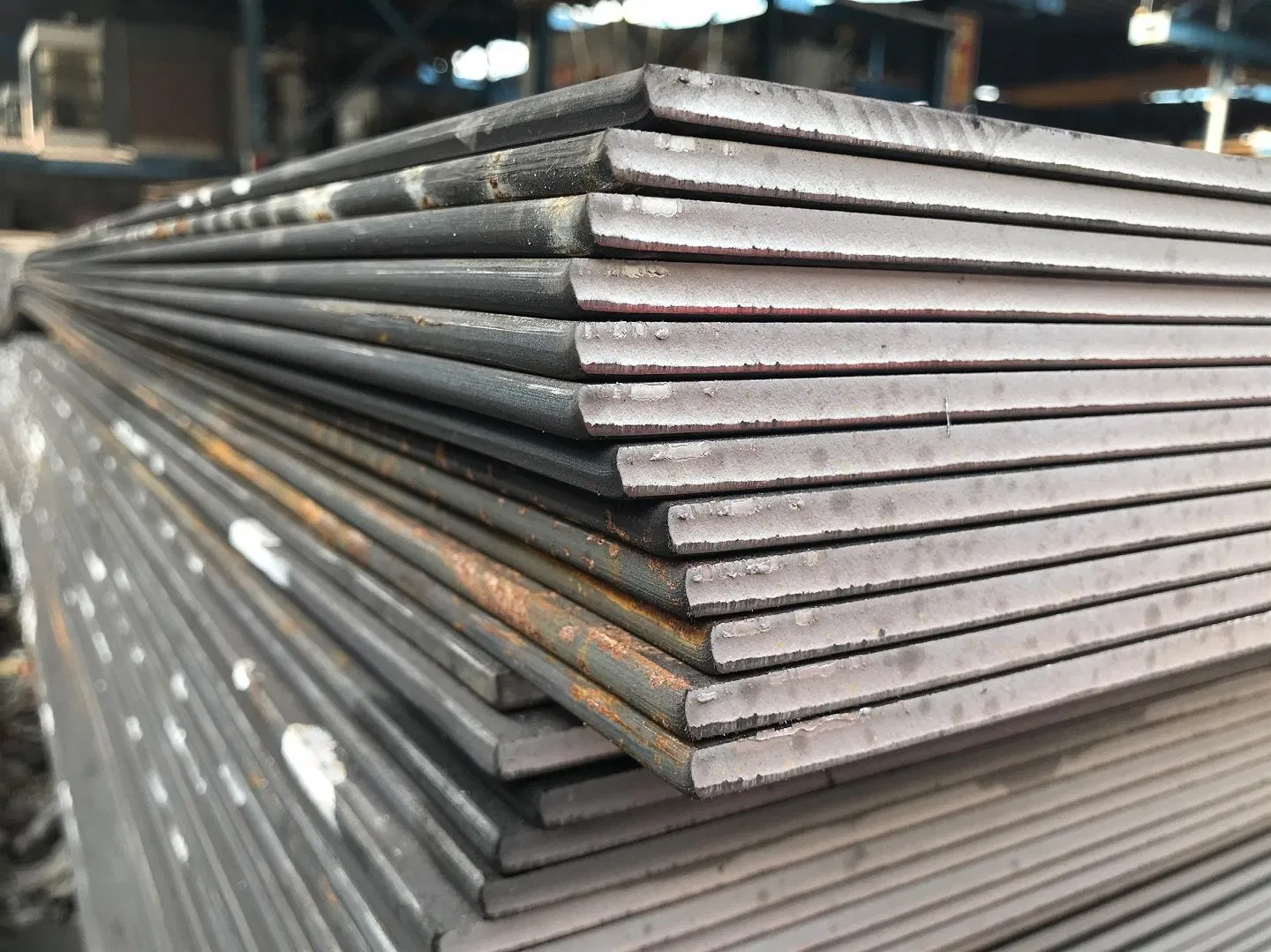

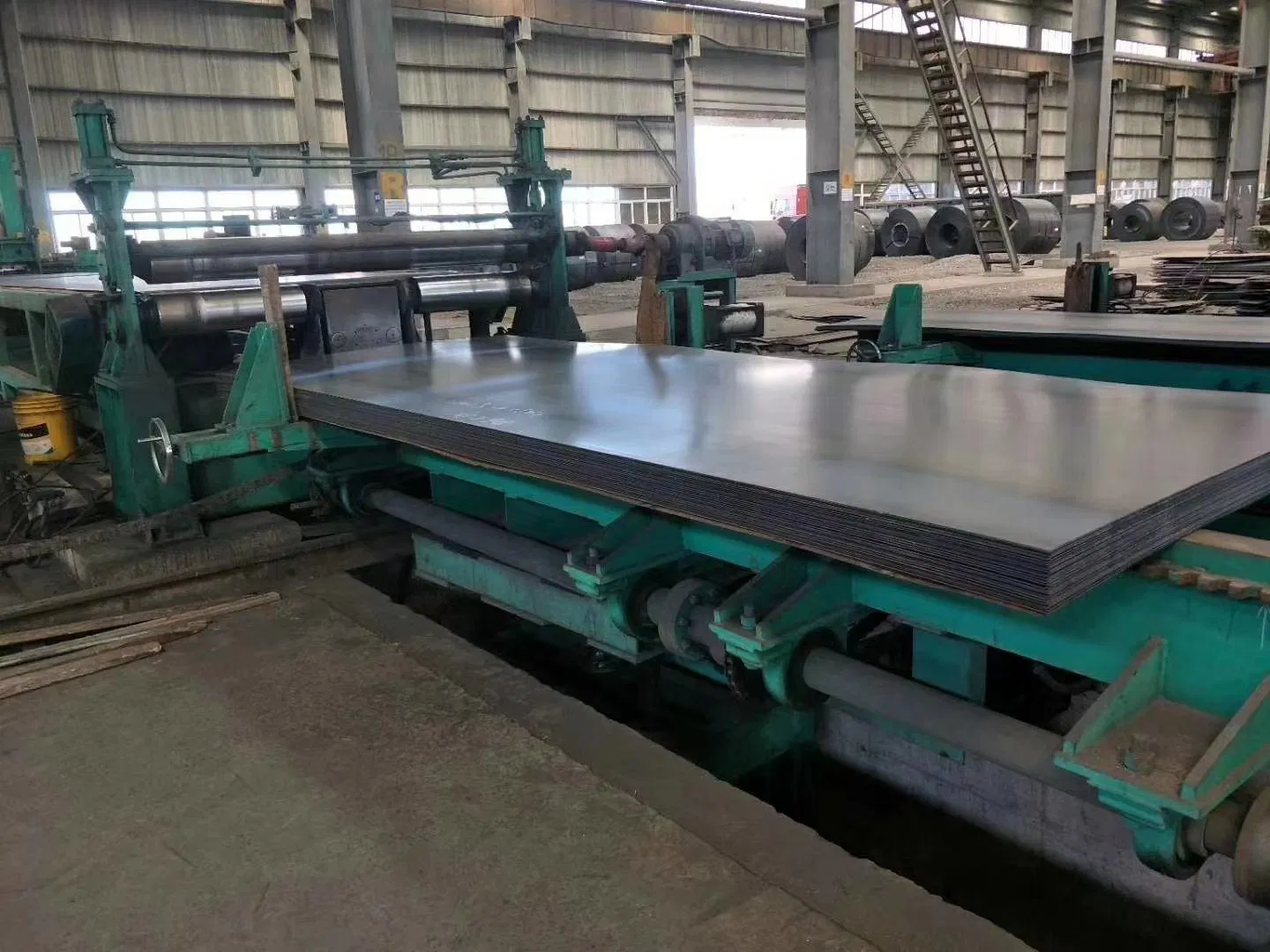

Product Description ProductMS Carbon mild steel sheet and plate S235JR Q235B hot rolled steel plateStandardASME, ASTM, EN, BS, GB, DIN, JIS etc Material Q235B,Q345B,SS400,SS490,S235JR,S275JR,S355JR TechniqueHot RolledSurfaceMill Finish, PaintedPackingIn standard export package or as required......

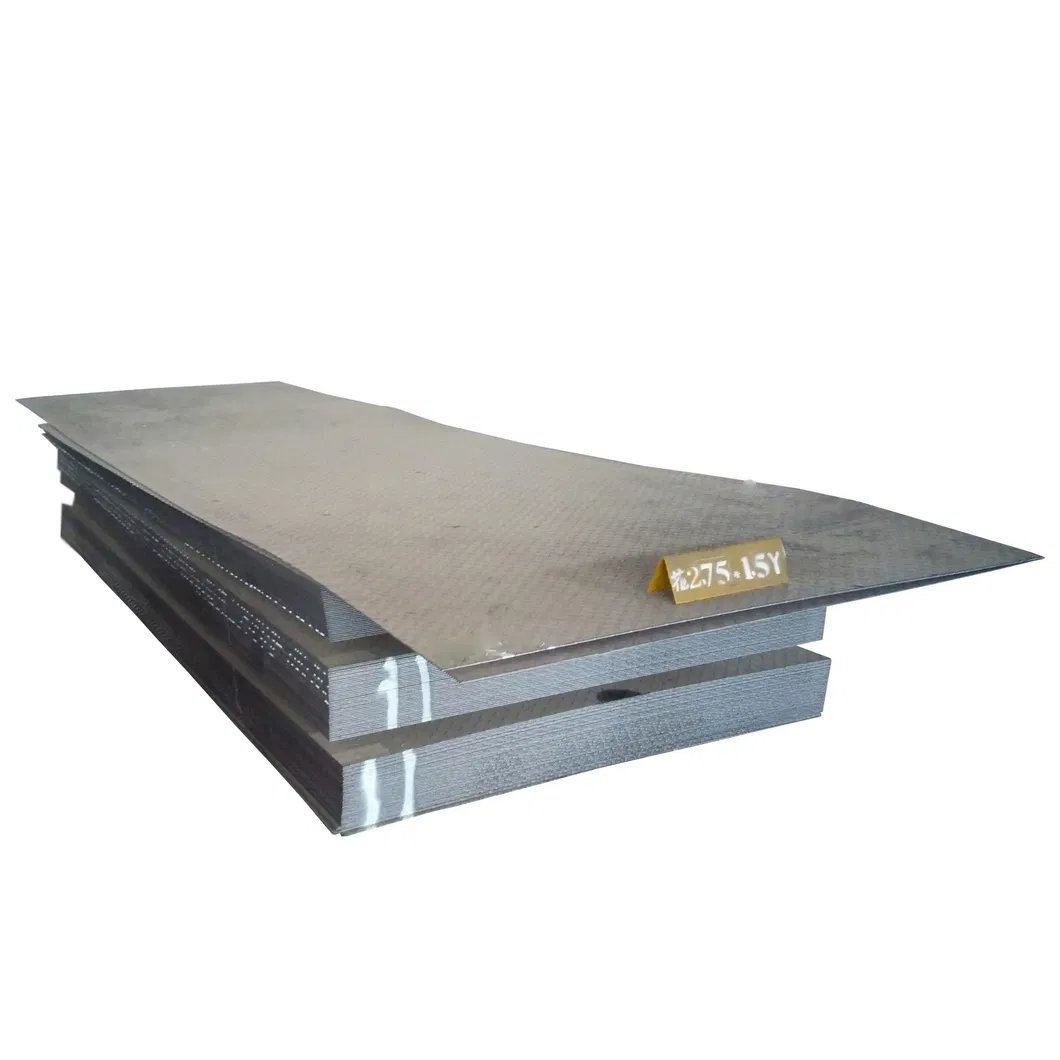

Product | MS Carbon mild steel sheet and plate S235JR Q235B hot rolled steel plate |
Standard | ASME, ASTM, EN, BS, GB, DIN, JIS etc |
Material | Q235B,Q345B,SS400,SS490,S235JR,S275JR,S355JR |
Technique | Hot Rolled |
Surface | Mill Finish, Painted |
Packing | In standard export package or as required |
Delivery Time | Ready stocks 3-7 days, customized 7-10 days for customized size |
MOQ | 5 Ton |
Item | Material | Thickness (mm) | Width (mm) | Length (mm) |
MS Hot Rolled Steel Plate | Q235 SS400 A36 | 6-25 | 600 - 2500 | 4000 - 12000 |
EN10025 HR Steel Plate | S275 / S275JR ,S355/S355 JR | 6-30 | 600 - 2500 | 4000 - 12000 |
Boiler Steel Plate | Q245R , Q345R A516 Gr.60 , A516 Gr.70 | 6-40 | 600-2200 | 4000 - 12000 |
Bridge Steel Plate | Q235, Q345, Q370, Q420 | 1.5-40 | 600-2200 | 4000 - 12000 |
Ship-building Steel Plate | CCSA/B/C/D/E, AH36 | 2-60 | 600-2200 | 4000 - 12000 |
Wear Resistant Steel Plate | NM360, NM400, NM450, NM500, NM550 | 6-70 | 600-2200 | 4000 - 8000 |
Corten Steel Plate | SPA-H, 09CuPCrNiA, Corten A | 1.5-20 | 600-2200 | 3000 - 10000 |
Chemical Content | ||||||||
Steel/Grade | C | Si | Mn | P | S | AL | Cr+Ni+Mo | Nb+V+Ti |
NM360/AR360 | 0.10-0.30 | 0.20-0.40 | 1.00-2.00 | ≤0.015 | ≤0.003 | ≥0.20 | <0.6 | |
NM400/AR400 | 0.10-0.40 | 0.20-0.40 | 1.00-2.00 | ≤0.015 | ≤0.003 | ≥0.20 | <0.9 | |
NM450/AR450 | 0.10-0.40 | 0.20-0.40 | 1.00-2.00 | ≤0.015 | ≤0.003 | ≥0.20 | <1.2 | |
NM500/AR500 | 0.10-0.40 | 0.20-0.45 | 1.00-2.00 | ≤0.015 | ≤0.003 | ≥0.20 | <1.5 | |
NM550/AR550 | 0.10-0.50 | 0.20-0.45 | 1.00-1.50 | ≤0.015 | ≤0.003 | ≥0.20 | <2.0 | |
NM600/AR600 | 0.10-0.50 | 0.20-0.45 | 1.00-1.50 | ≤0.015 | ≤0.003 | ≥0.20 | <2.5 |
Mechanical property | ||||
Grade | Tensile strength | Elongation | Hardness | -20ºC Impact energy |
(Mpa) | (%)(min) | (HBW) | AKv/J (min) | |
NM360 | ≥1100 | 12 | 330-390 | 24 |
NM400 | ≥1200 | 10 | 370-430 | 24 |
NM450 | ≥1250 | 7 | 420-480 | 24 |
