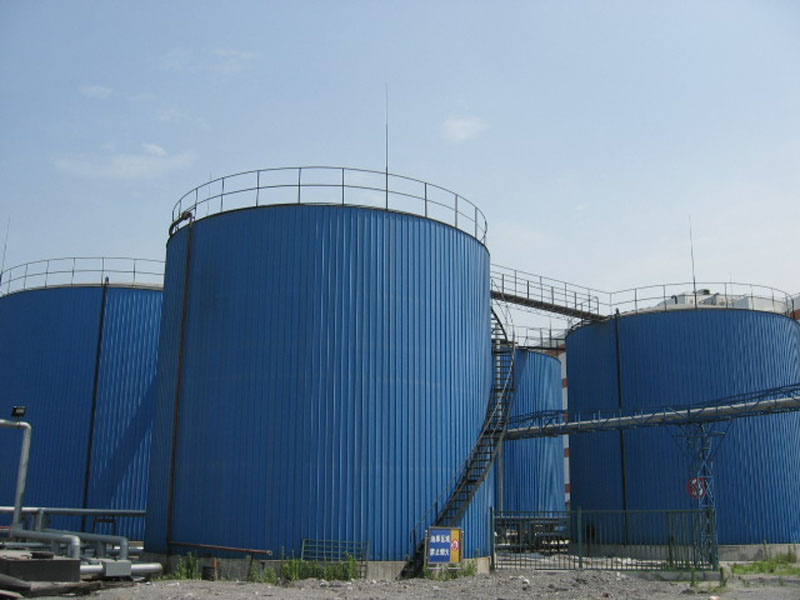

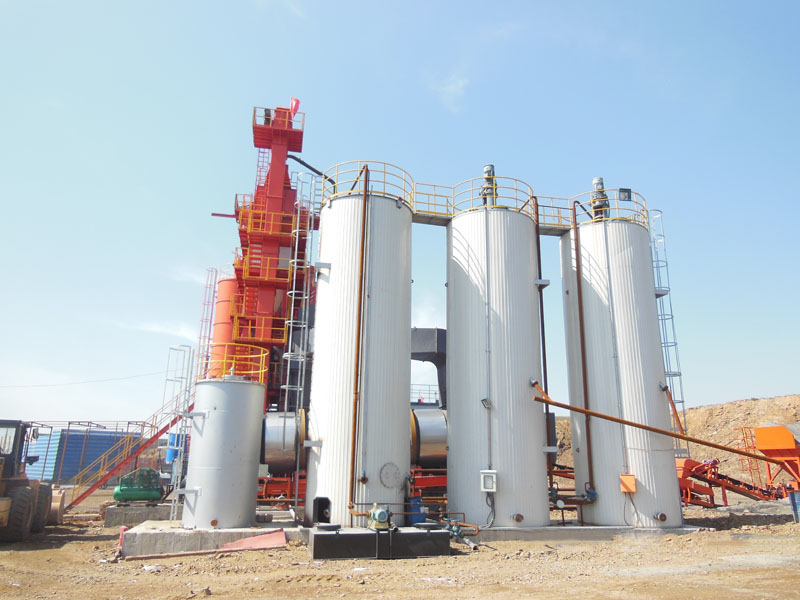

Bitumen Storage Tank

A bitumen storage tank, also known as an asphalt storage tank or bitumen tank, is a specialized container used to store and maintain the temperature of bitumen or asphalt binder. Bitumen is a thick, sticky, black or dark brown substance derived from crude oil and is a key component in the production of asphalt mixtures used in road construction and various other applications. Bitumen storage tanks are crucial in the asphalt production process to ensure that the bitumen remains in its liquid state and can be easily pumped and mixed with other materials. Here are some key features and functions of bitumen storage tanks:

1. Storage Capacity: Bitumen storage tanks come in various sizes and capacities, ranging from small tanks used for batch production to large tanks for continuous asphalt production. The capacity of these tanks depends on the specific needs of the asphalt plant or construction project.

2. Insulation: Bitumen is typically stored at high temperatures to maintain its viscosity for mixing with aggregates. Bitumen storage tanks are heavily insulated to prevent heat loss and maintain the bitumen at the desired temperature. Insulation materials can include rock wool, fiberglass, or foam insulation.

3. Heating System: To keep the bitumen at the required temperature, heating systems are integrated into the storage tanks. Common heating methods include direct-fired burners, hot oil heating coils, or electrical heating elements. These systems ensure that the bitumen remains in a liquid state, making it easy to pump and mix.

4. Temperature Control: Temperature control systems are essential for maintaining precise temperature levels within the tank. These systems include temperature sensors and controllers that regulate the heating elements or burners as needed.

5. Agitation System: Some bitumen storage tanks are equipped with agitation systems to prevent settling and ensure uniform temperature distribution within the tank. Agitators or mixers help maintain the homogeneity of the bitumen.

6. Safety Features: Safety is a primary concern when dealing with bitumen due to its flammable nature. Bitumen storage tanks may have safety features such as flame arrestors, emergency venting systems, and temperature monitoring to prevent overheating and potential hazards.

7. Loading and Unloading Systems: Bitumen can be loaded into the tank via tanker trucks or other means. These tanks are equipped with loading and unloading systems, including pumps and valves, to facilitate the transfer of bitumen in and out of the tank.

8. Environmental Considerations: Proper environmental safeguards are essential when handling bitumen. Tanks are designed to prevent spills and leaks, and they often have containment areas to capture any potential spills.

9. Maintenance and Cleaning: Regular maintenance and cleaning of bitumen storage tanks are crucial to ensure their continued functionality and prevent contamination of the bitumen.

Bitumen storage tanks are a critical component of asphalt production facilities and road construction projects. They allow for the safe and efficient storage of bitumen at the necessary temperature, ensuring the quality and consistency of asphalt mixtures used in road surfaces and other applications.
