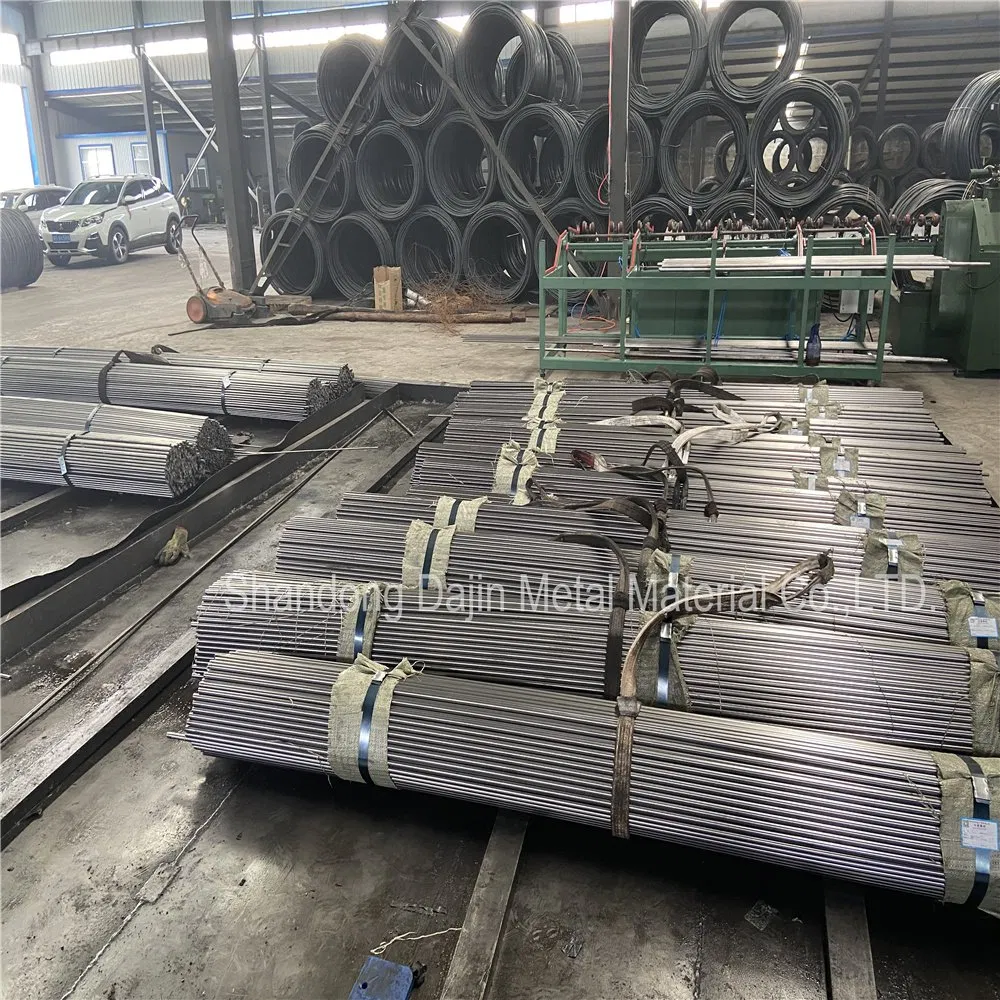

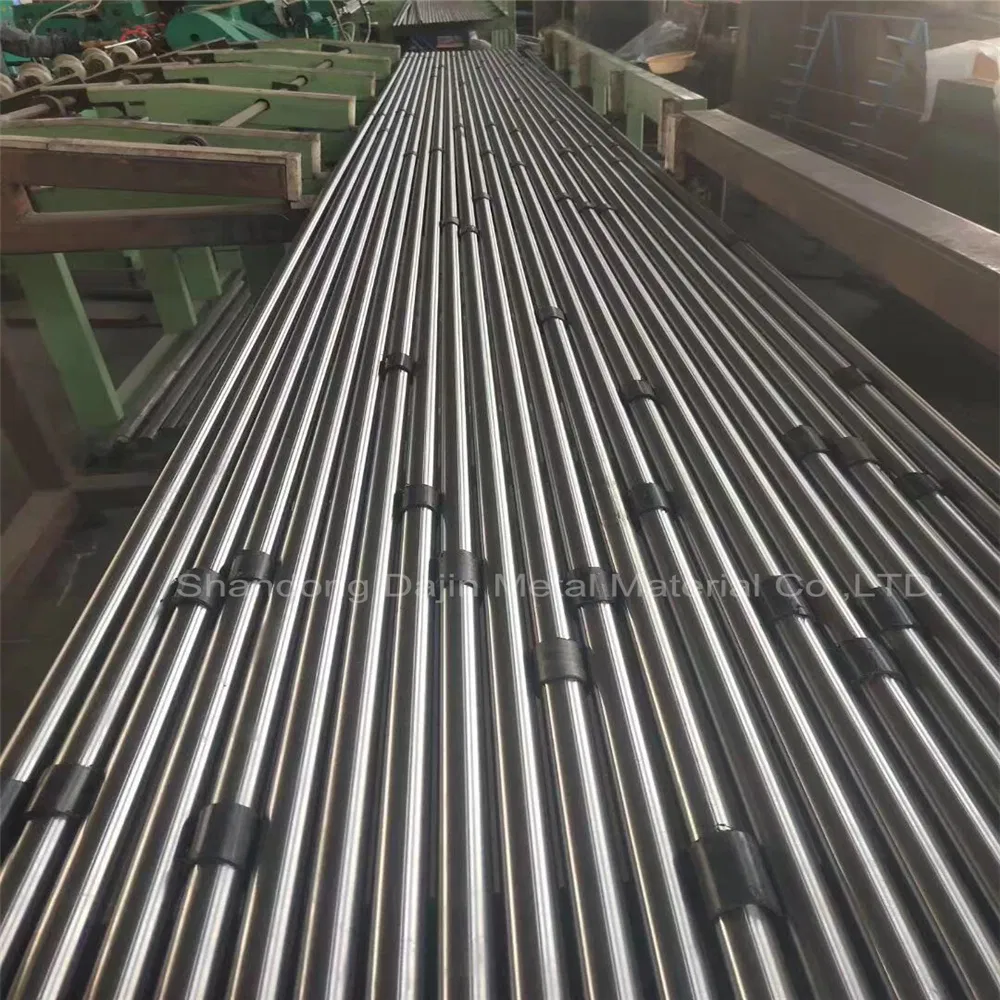

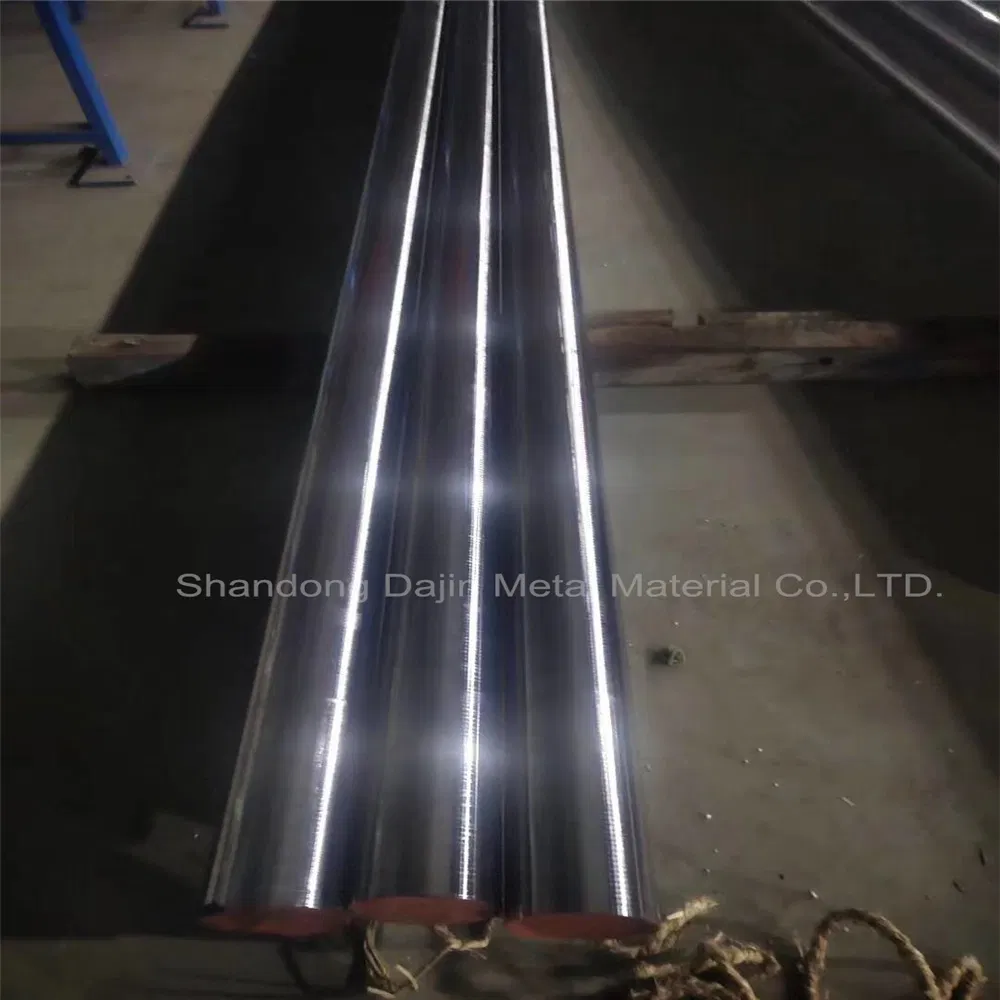

11smn30 AISI1215 12L14 Cold Drawn Calibrated Free Cutting Steel Bar
11SMn30 AISI 1215 Cold drawn steel bar cold rolld steel bars Free cutting steel1.AISI1215 cold drawn steel barAISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and consistent level of machinability but limited strength and ductility..2.AISI 1215 Cold drawn steel bar T......
Send Inquiry
Product Description
11SMn30 AISI 1215 Cold drawn steel bar cold rolld steel bars Free cutting steel
1.AISI1215 cold drawn steel bar
AISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and consistent level of machinability but limited strength and ductility..
2.AISI 1215 Cold drawn steel bar Typical applications
Heavily mahined components and parts subject to low stress levels,low shock loading,with limited and forming
3.AISI 1215 cold drawn steel bar main type and avaliable sizes
4.AISI 1215 Cold drawn steel bar size tolerance
h9,h10,h11 or other tolerance according to client's requirement
5.AISI 1215 Cold drawn steel bar chemical composition(%)
6.AISI 1215 Alternative grade in different standard
7.AISI 1215 Typical Mechanical Properties - Cold Drawn and Turned and Polished Condition
8.Straightness: 1mm/m(max)
9. Steel bar Packing:
*Bars from different heats will not be mixed and dispatched.
*Bars will be bundles and securely metal strapped in 3 min places of the bar length and tagged properly.
*For further processing products such as cold drawn/peeled or heat treated goods, plastics bag wrapped or pallet loading is available according to customer's demands.
10.Delivery time of steel bar:
7-10days of stock,30 days after order confirmed of new material
11.Payment term:TT or LC
12.Free sample:Yes
13.steel bar Inspection: Spectral Tested, Microstructure Tested,Hardness Test,Macrostructure Test,UT test
14.Our cold drawn factory equipments
We adopt advanced production technology and first-class processing equipments, such as heat treatment furnace, straightening machine, centerless grinding machine, polishing machine, as well as lathing and milling machine etc.
15.Our steel bar mill's certificates
ISO901&ISO.TS16949,ISO4001,OHSAS18001
Special Equipment Manufacturing License of P.R.C for pipeline plate,steel plate for boiler&Vessel;
ISO/TS16949 2009 for Manufacturing of Special steel;
Europe CE Mark Certificate;JIS MARK,KS MARK.
With dynamic and passionate professional sales team and technical team,Our company Dajin make great efforts to integrate China's steel resources and dedication to customers the provision of specialized steel products and services.Hope establish a good relationship with clients, growth together.
1.AISI1215 cold drawn steel bar
AISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and consistent level of machinability but limited strength and ductility..
2.AISI 1215 Cold drawn steel bar Typical applications
Heavily mahined components and parts subject to low stress levels,low shock loading,with limited and forming

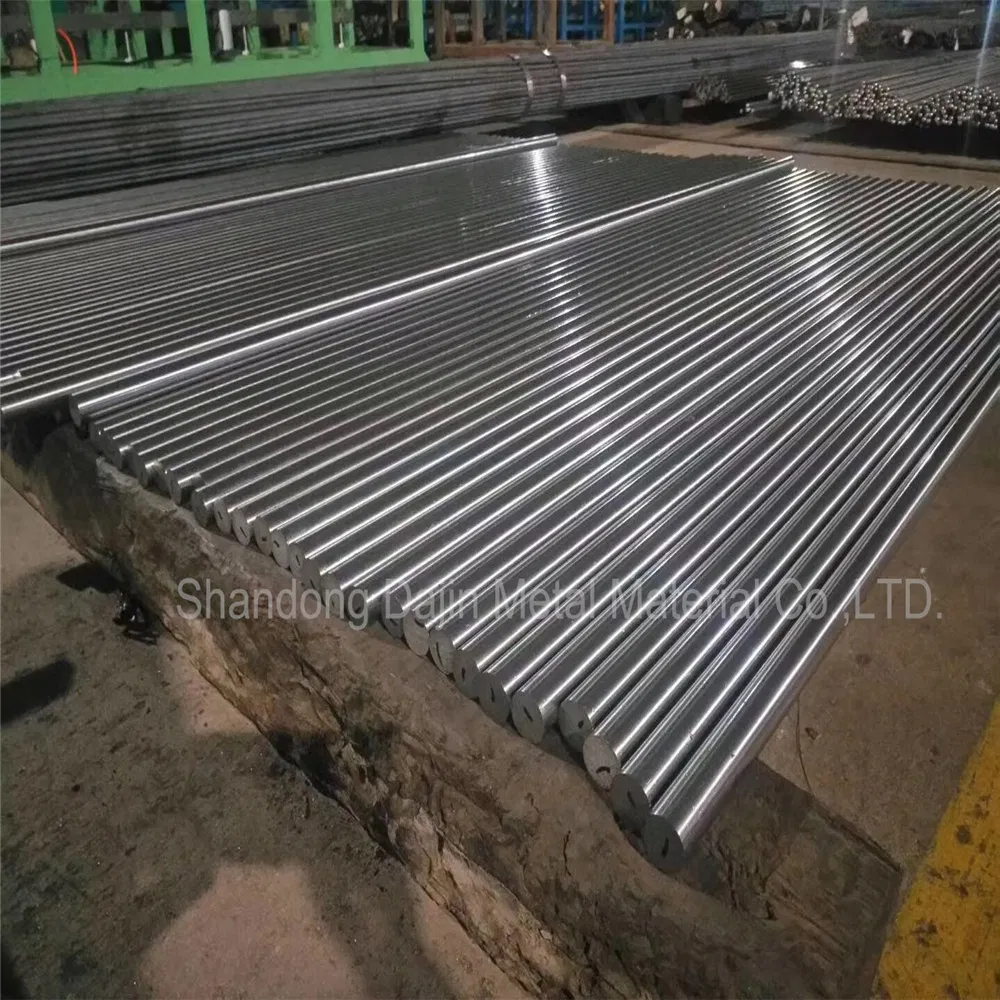

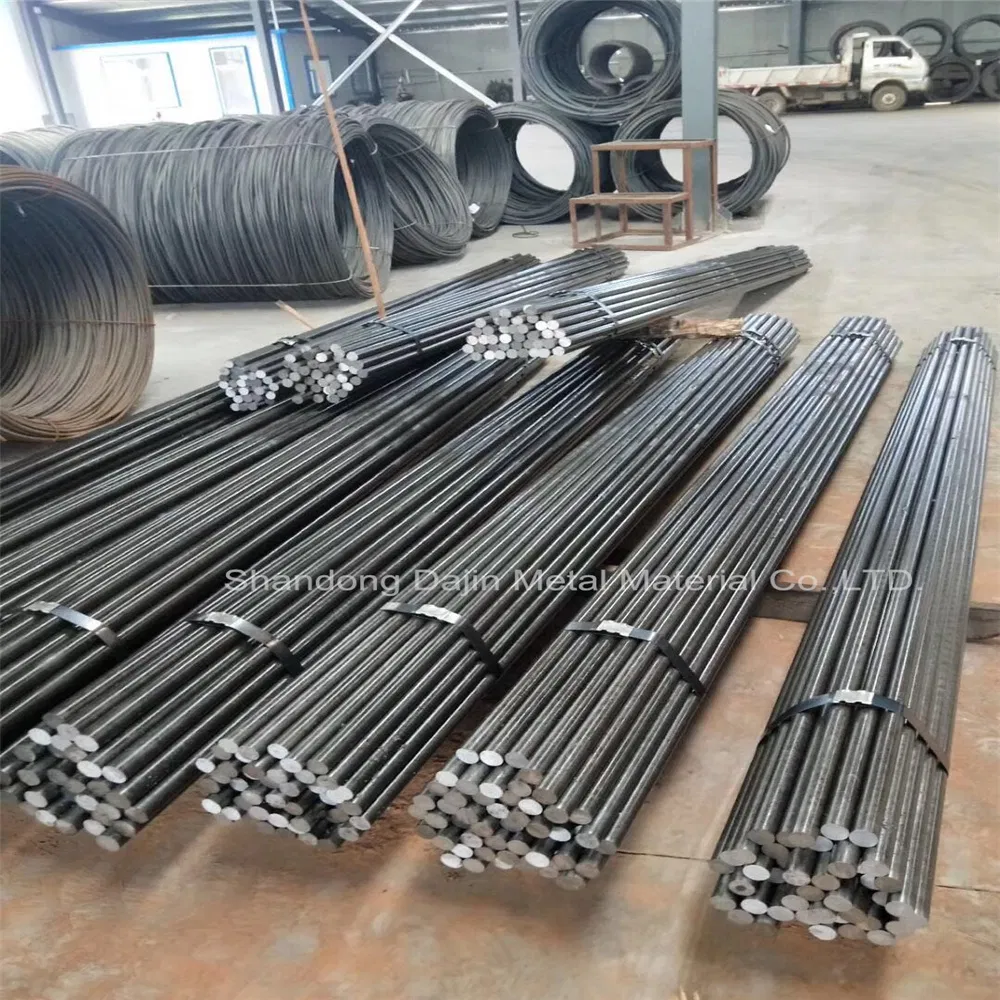

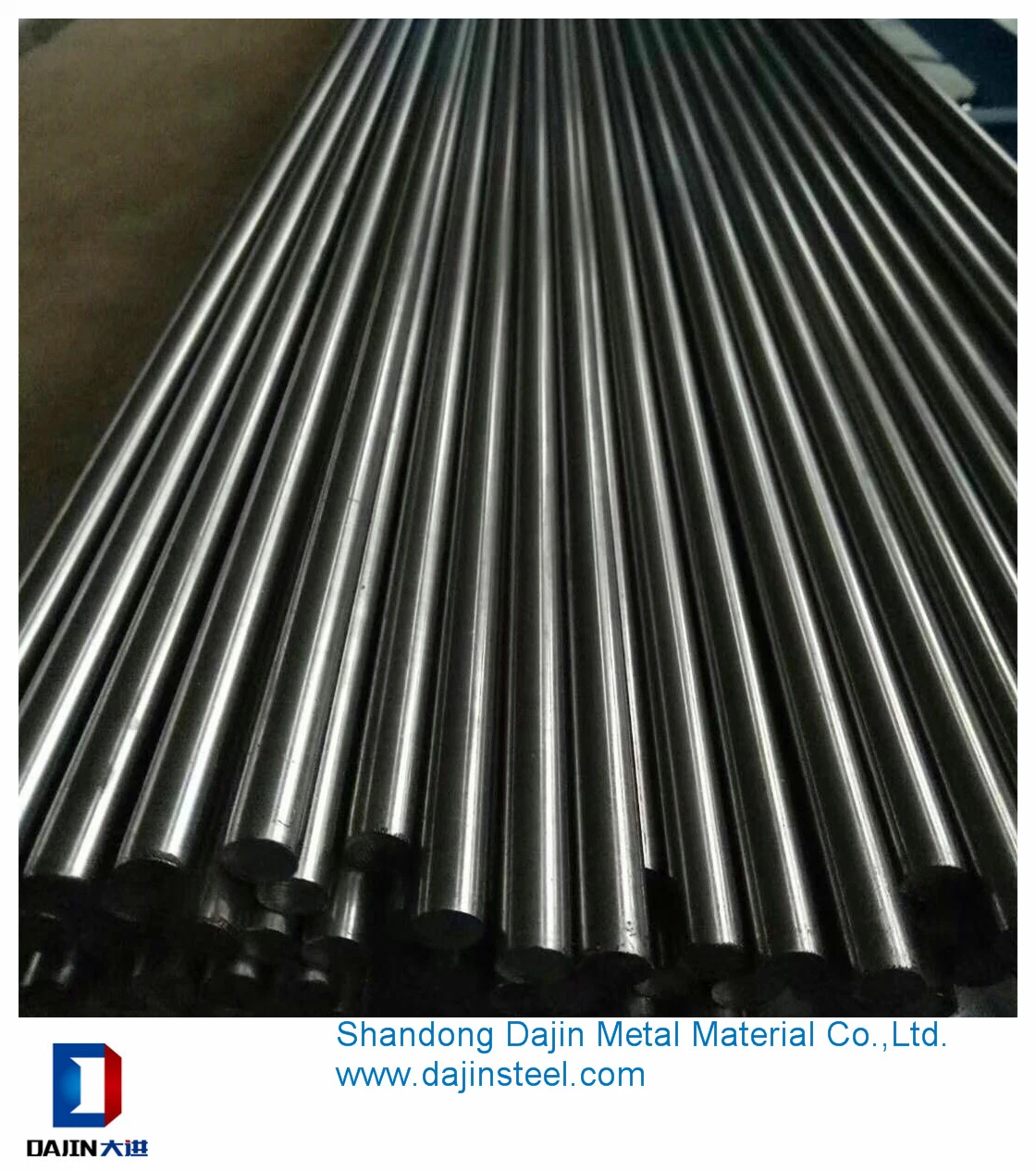

3.AISI 1215 cold drawn steel bar main type and avaliable sizes
| Round bars | 5mm-130mm |
| Suqare bar | 6*6mm-100*100mm |
| Flat bars | 3mm*20mm-50mm*100mm |
| Hex bars | 6mm-100mm |
| Bar Finsihe | Peeled, Cold Drawn, TurnedTurned & Polished, Centreless Ground |

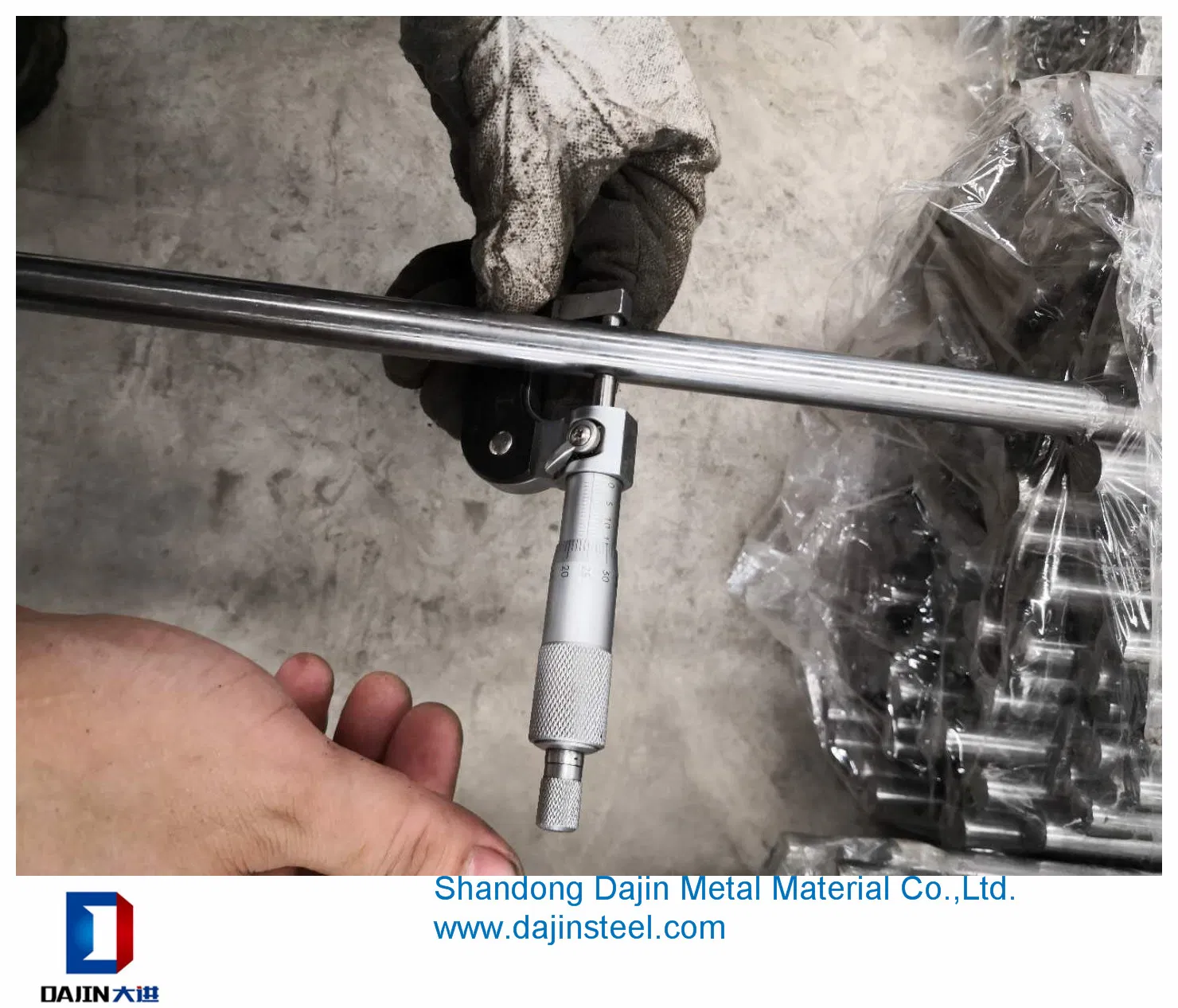

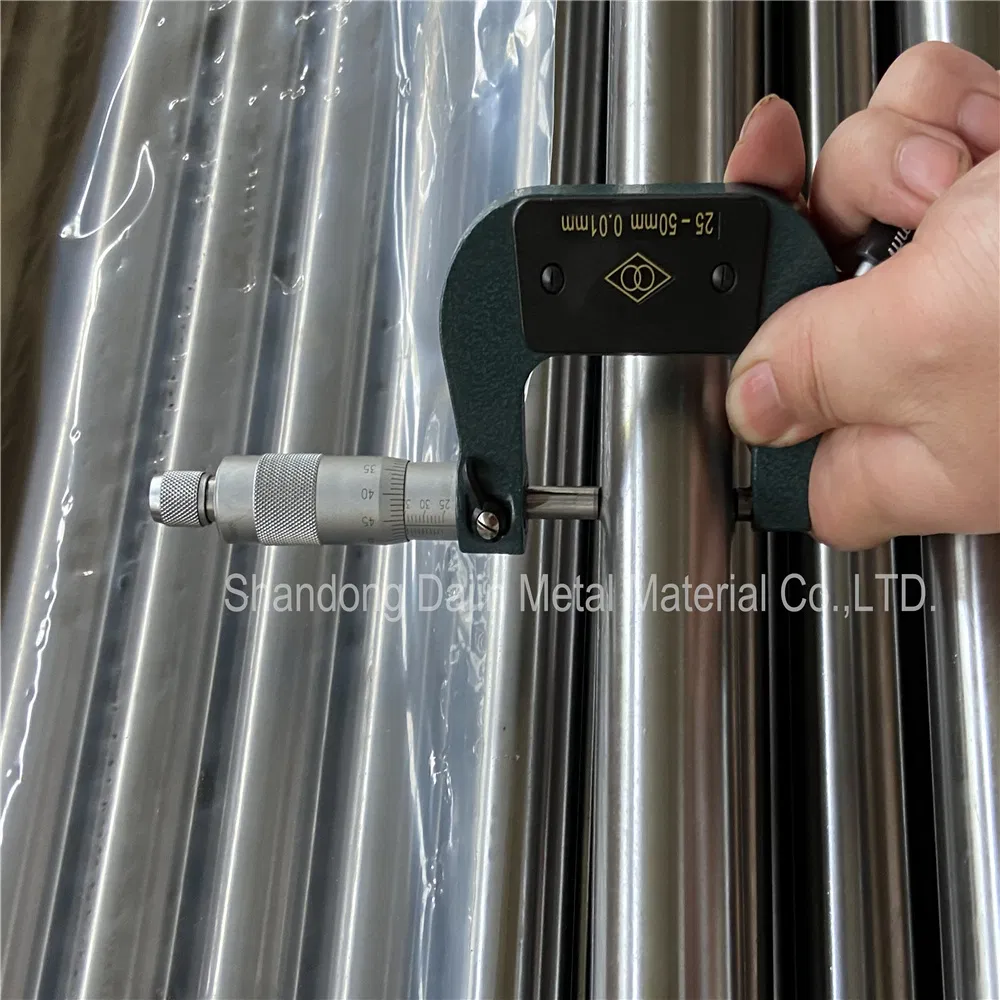

4.AISI 1215 Cold drawn steel bar size tolerance
h9,h10,h11 or other tolerance according to client's requirement
5.AISI 1215 Cold drawn steel bar chemical composition(%)
| C | Si | Mn | P | S |
| 0.07 | 0.01 | 1.00 | 0.05 | 0.30 |
6.AISI 1215 Alternative grade in different standard
| AS1443-1994 | 1214 |
| BS 970-3-1991 | 230M07 |
| EN 10277 | 1.0715 11SMn30 |
| JIS G4804 | SUM22 or SUM23 |
| SAE&UNS | 1215&G12150 |
7.AISI 1215 Typical Mechanical Properties - Cold Drawn and Turned and Polished Condition
| Finish | Yield Strength Mpa | TensileStrength Mpa | Elongation | Hardness HB |
| Bright Drawn | 290-550 | 400-650 | 7 Min | 115-200 |
| Smooth Turned | 230-310 | 370-500 | 17 Min | 100-150 |
8.Straightness: 1mm/m(max)

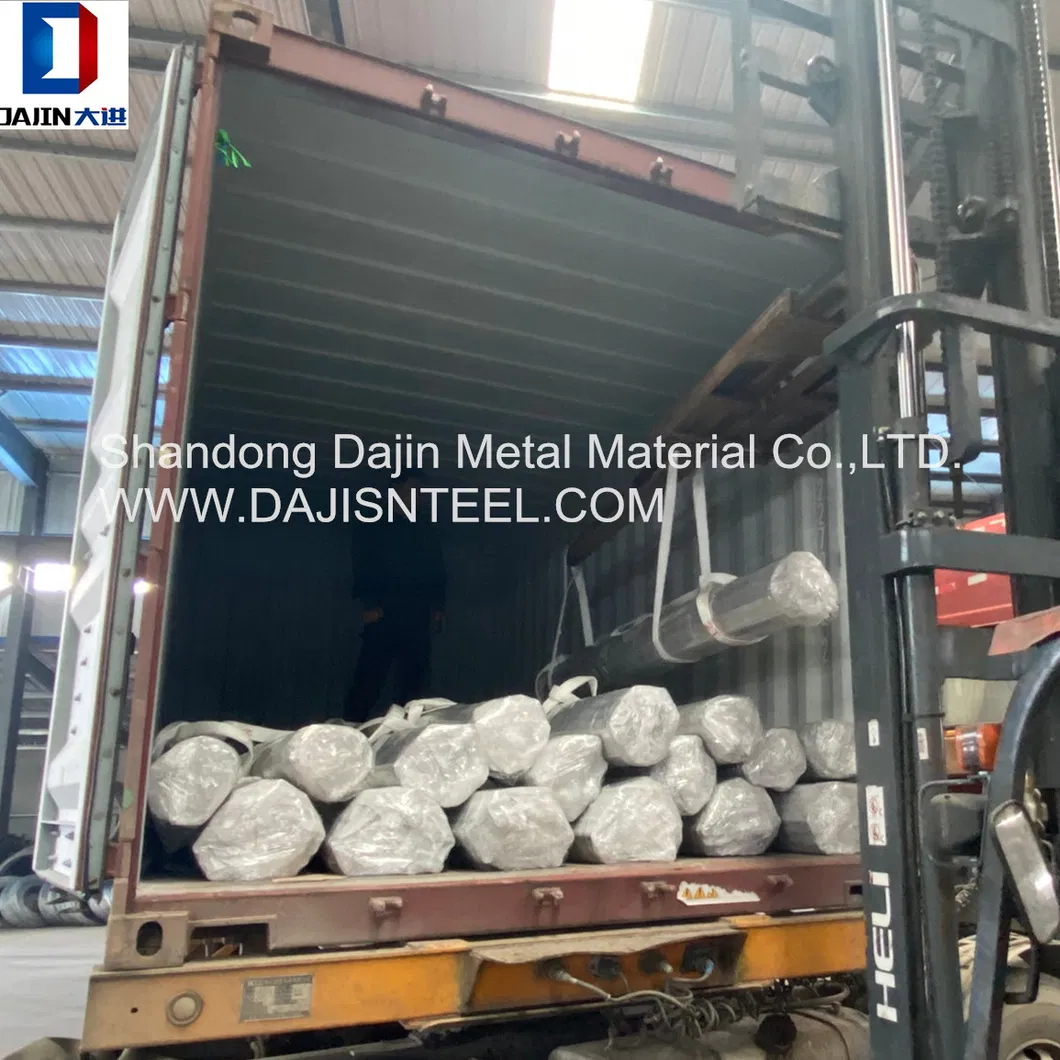

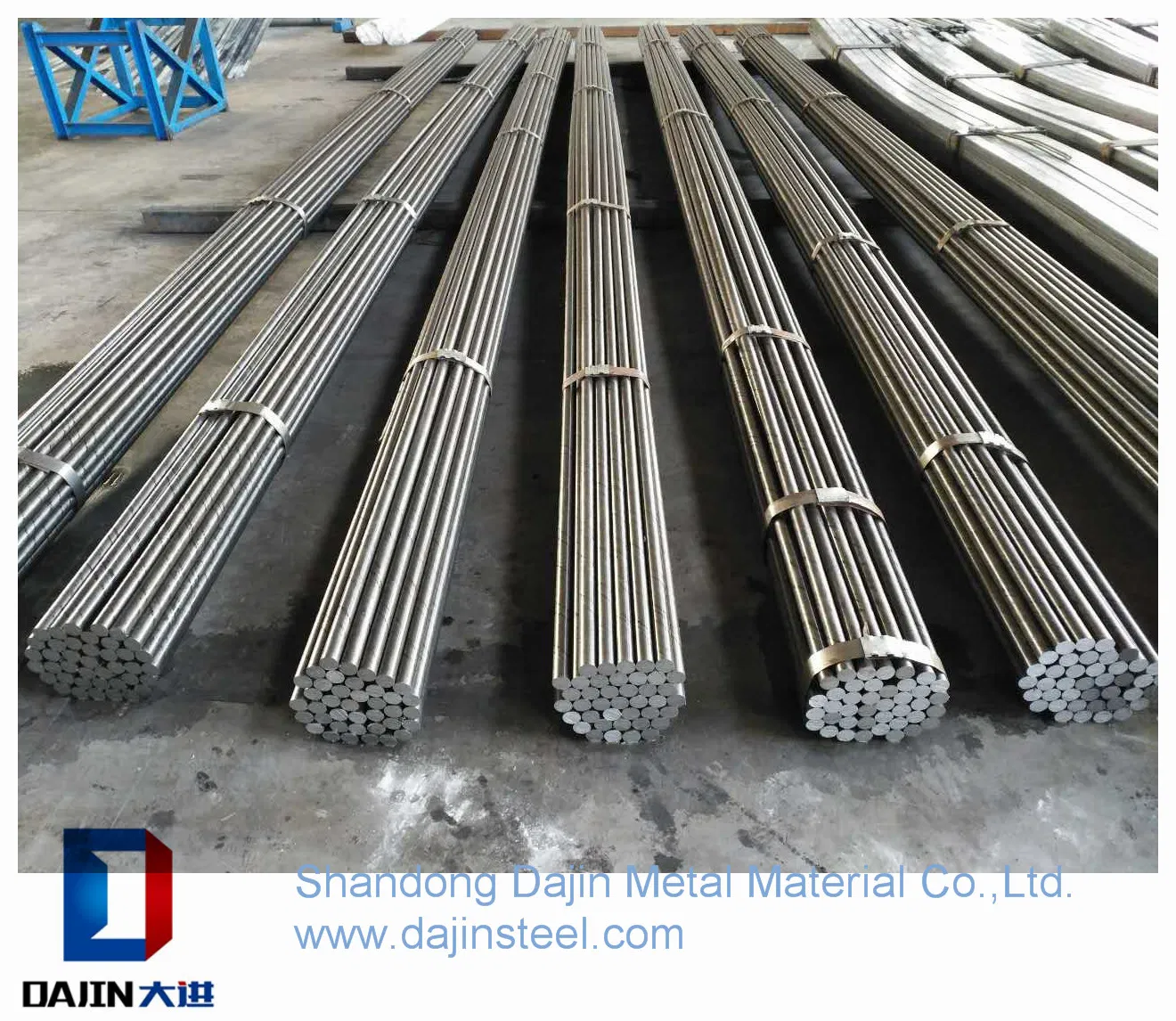

9. Steel bar Packing:
*Bars from different heats will not be mixed and dispatched.
*Bars will be bundles and securely metal strapped in 3 min places of the bar length and tagged properly.
*For further processing products such as cold drawn/peeled or heat treated goods, plastics bag wrapped or pallet loading is available according to customer's demands.
10.Delivery time of steel bar:
7-10days of stock,30 days after order confirmed of new material
11.Payment term:TT or LC
12.Free sample:Yes
13.steel bar Inspection: Spectral Tested, Microstructure Tested,Hardness Test,Macrostructure Test,UT test

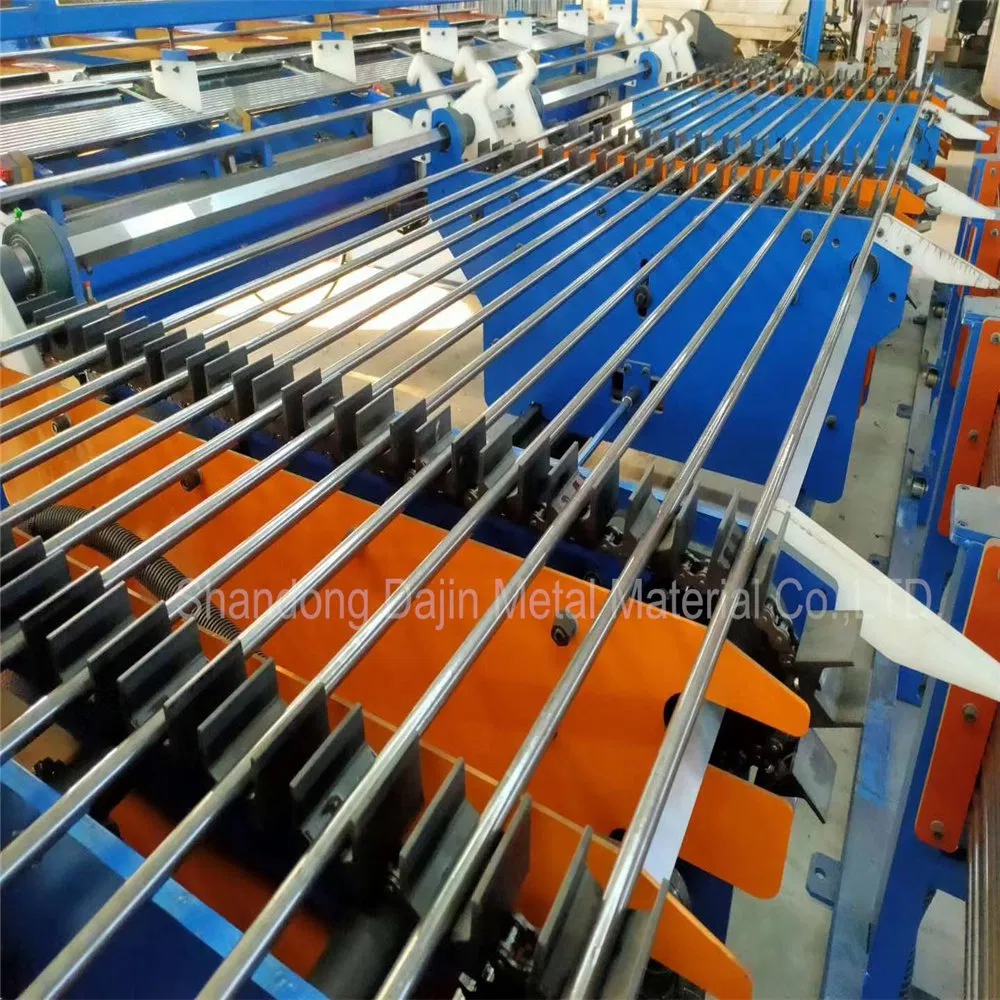

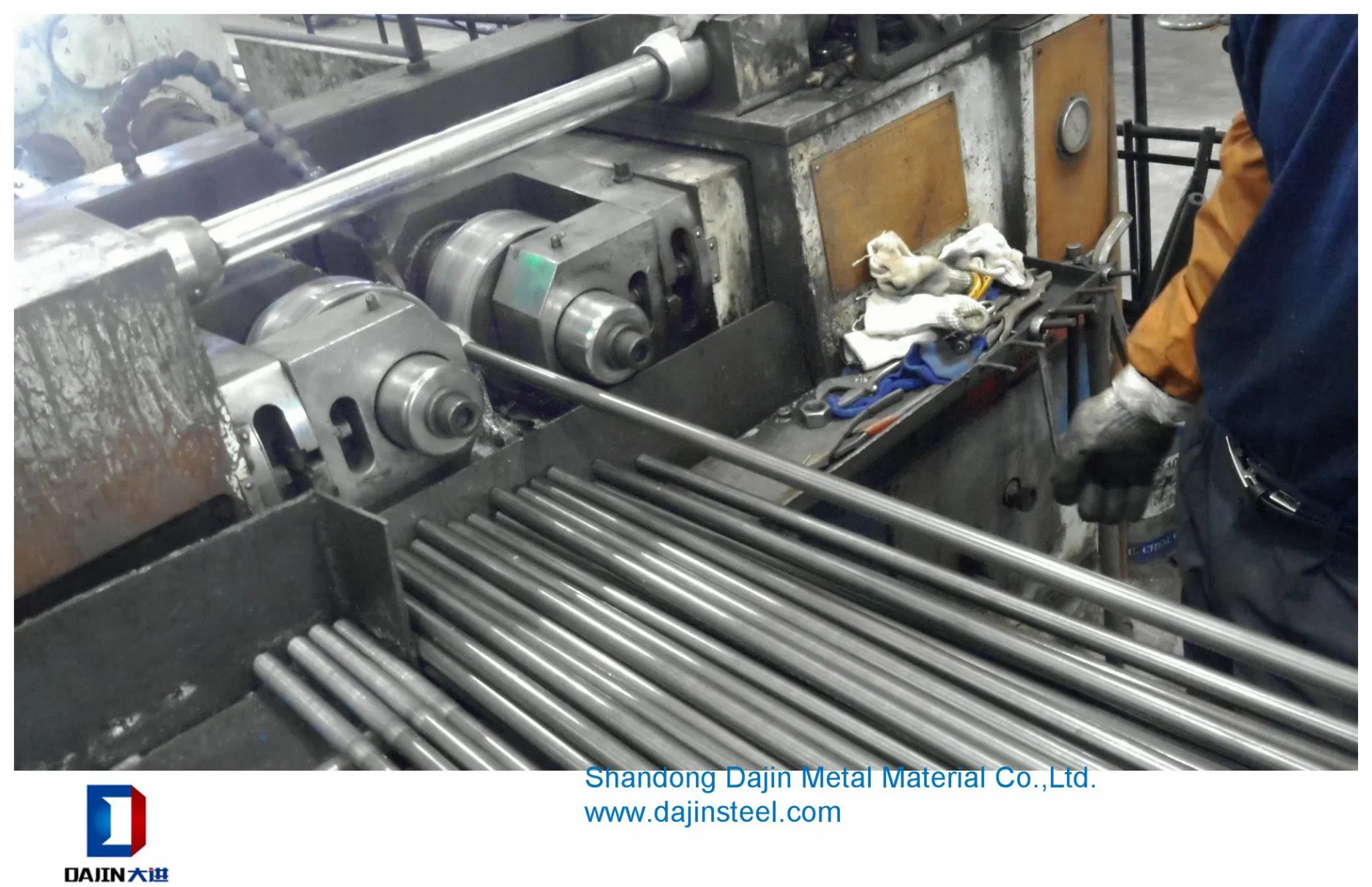

14.Our cold drawn factory equipments
We adopt advanced production technology and first-class processing equipments, such as heat treatment furnace, straightening machine, centerless grinding machine, polishing machine, as well as lathing and milling machine etc.
15.Our steel bar mill's certificates
ISO901&ISO.TS16949,ISO4001,OHSAS18001
Special Equipment Manufacturing License of P.R.C for pipeline plate,steel plate for boiler&Vessel;
ISO/TS16949 2009 for Manufacturing of Special steel;
Europe CE Mark Certificate;JIS MARK,KS MARK.
With dynamic and passionate professional sales team and technical team,Our company Dajin make great efforts to integrate China's steel resources and dedication to customers the provision of specialized steel products and services.Hope establish a good relationship with clients, growth together.
