Product Description

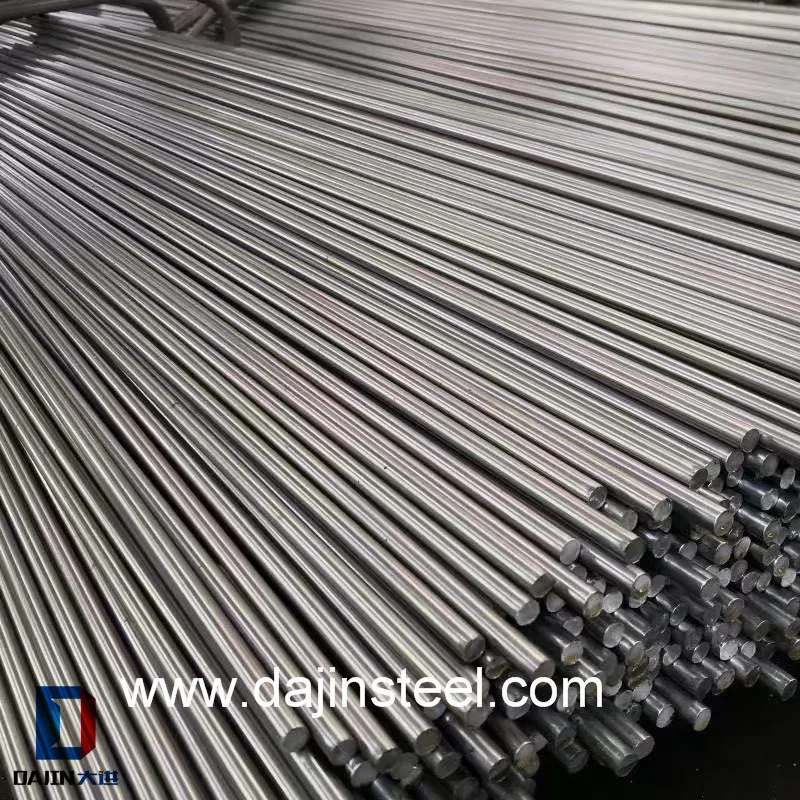

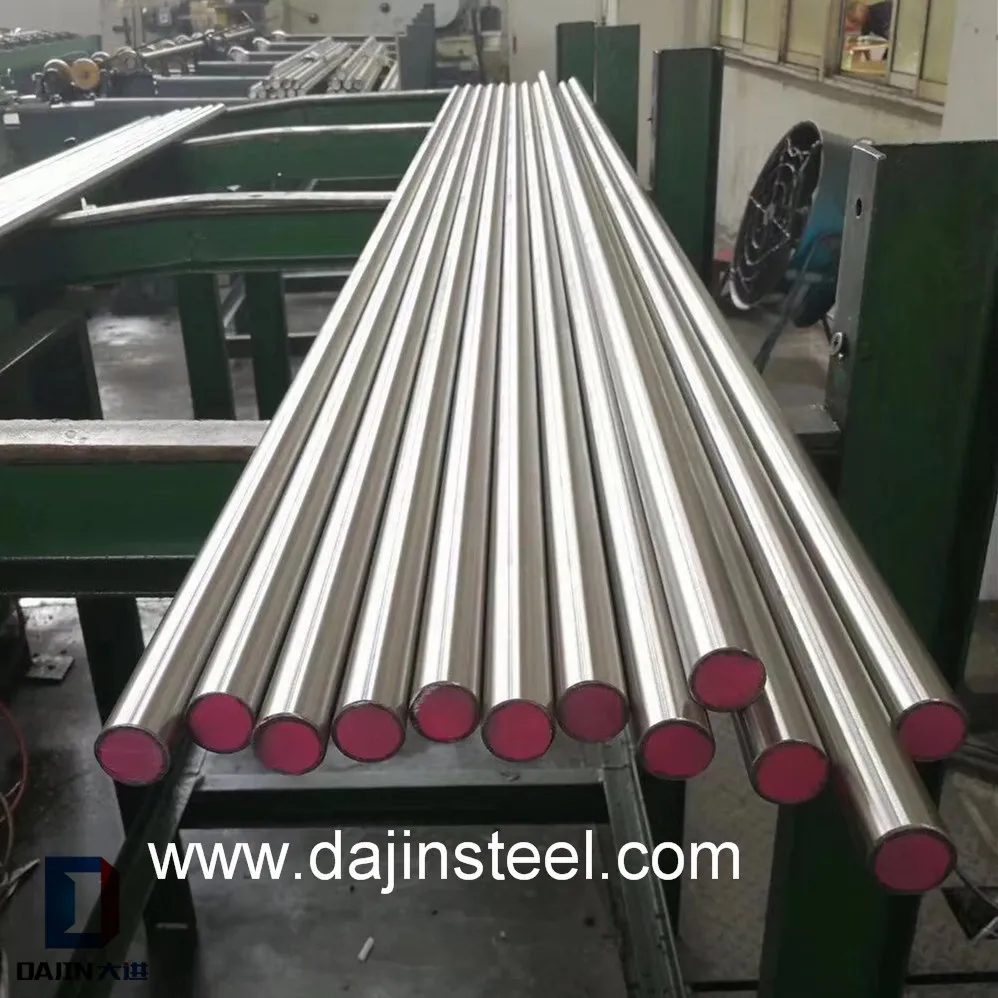

Cold finished steel Cold drawn steel round bar

Cold drawn steel bar also called cold finished steel bar,bright steel bar or polished steel bar.The surface of cold drawn steel bar is very smoothly,with very precision size and high mechanical properties.So it can be used for auto parts/shafts/fastners/tie rod without extra processing.
1215 12L14 1144 Free Cutting Cold Finished Steel Rod

1215 12L14 1144 Free Cutting Cold Finished Steel Rod

Type and Avaliable size of cold drawn steel bar

Cold drawn steel bar type	Size range
Round bar	5mm-100mm
Square bar	66mm-9090mm
Flat bar	3mm20mm-50mm100mm
Hexgonal bar	4mm-80mm

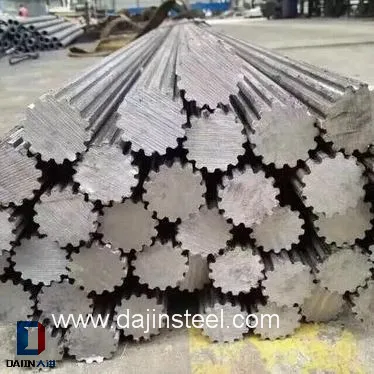

Section steel bar	As client'd drawing
Bar Finishe	Peeled,col drawn,turned&polished,centreless ground

Supply Grade of cold drawn steel bar

Grade Type	JIS	AISI/SAE	DIN
Carbon&cold heading	S10C,S20C,S25C, S35C,S45C,SWRCH10/ 15/20/35/45/48K	SAE1008,1010,1018, 1020,1035,1045	1.0213,10214, 1152,1.1172, 1.1192
Alloy	SCr420,SCr440, SCM415,SCM420, SCM435,SCM440, SNCM220,SNCM420	1541,5120,5140, 4115,4120,4130, 4140,4145,4145H, 8620,4320,4340	1.7015,1.7035, 1.7218,1.7220, 1.7225,1.6582, 1.6511,1.7038
Stainless	SUS F304, SUS316, 303Cu	F304,F316,316L	1.4301,1.4306, 1.4404
Free cutting	SUM21,SUM22, SUM23,SUM43, SUM24L	12L14,1215, 1213,1141,1144	11SMn30, 1.0715,1.0718, 11SMnPb30, 11SMnPb28

Cold drawn steel bar tolerance:h8,h9,h10,h11

Size(mm)	Tolerance
6-10	h8	h9	h10	h11
10-18	-0.022/+0mm	-0.036/+0mm	-0.058/+0mm	-0.090+0mm
18-30	-0.027/+0mm	-0.043/+0mm	-0.070/+0mm	-0.110/+0mm
30-50	-0.033/+0mm	-0.052/+0mm	-0.084/+0mm	-0.130/+0mm
50-80	-0.039/+0mm	-0.062/+0mm	-0.100/+0mm	-0.160+0mm
80-100	-0.046/+0mm	-0.074/+0mm	-0.120/+0mm	-0.190/+0mm

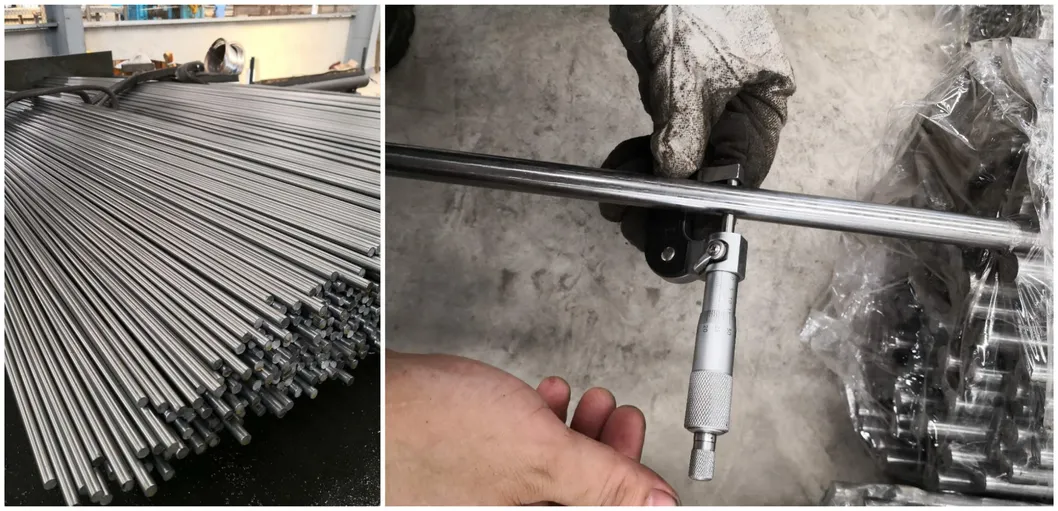

Our Quality key points of cold drawn steel

*The Min size tolerance we can produce is -0.02mm/+0mm.
* The Min Straightness can be 0.2mm/m
* Surface very shinny and smoothly(Min roughness can be 0.4um)
* Control the mechanical properties through annealing,normalized,quchening and tempering heat treatment
*Full inspection equirment,it can test size,rougness,UT level,properties,hardness etc
1215 12L14 1144 Free Cutting Cold Finished Steel Rod

Cold drawn steel bar main usage:cold drawn steel bar widely used in hardware,auto parts,fastners,shafts,automobiles,hydraulic presses,guide rails,machine keys,conveyor roller etc.

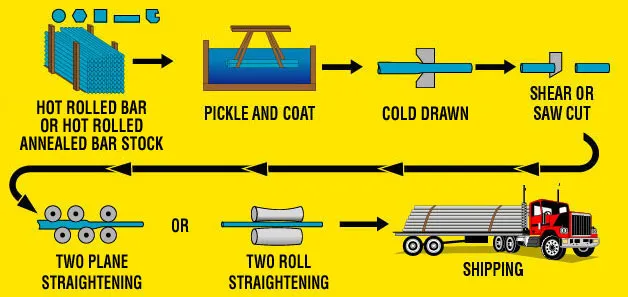

Cold drawn steel bar Production processing

EAF + LF + VD + CONCASTING BILLETS + HOT ROLLED + SHOT BLASTING +(ANNEALING) + COLD DRAWN + OILING + BUNDLING + BOTH ENDS CUTTING+ PACKING + MARKING
1215 12L14 1144 Free Cutting Cold Finished Steel Rod

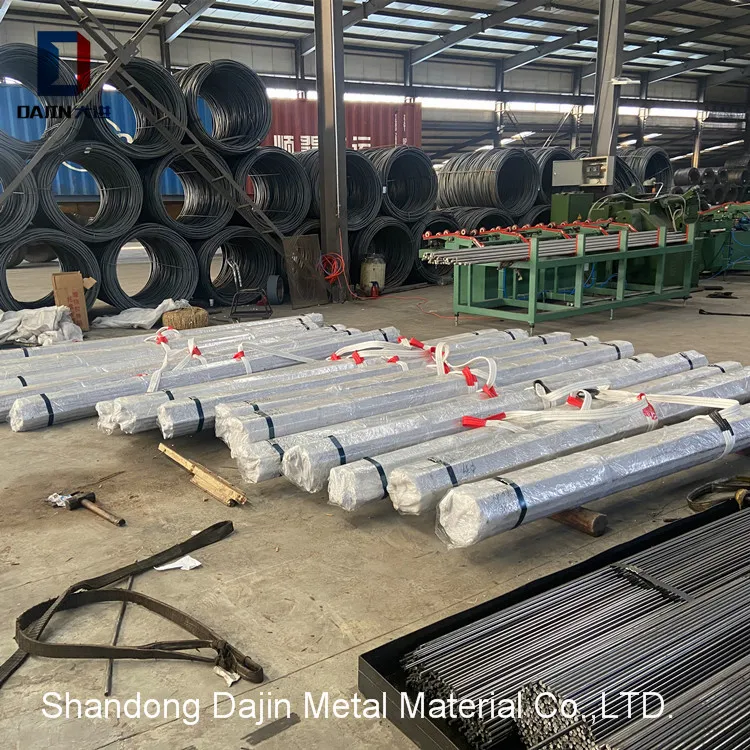

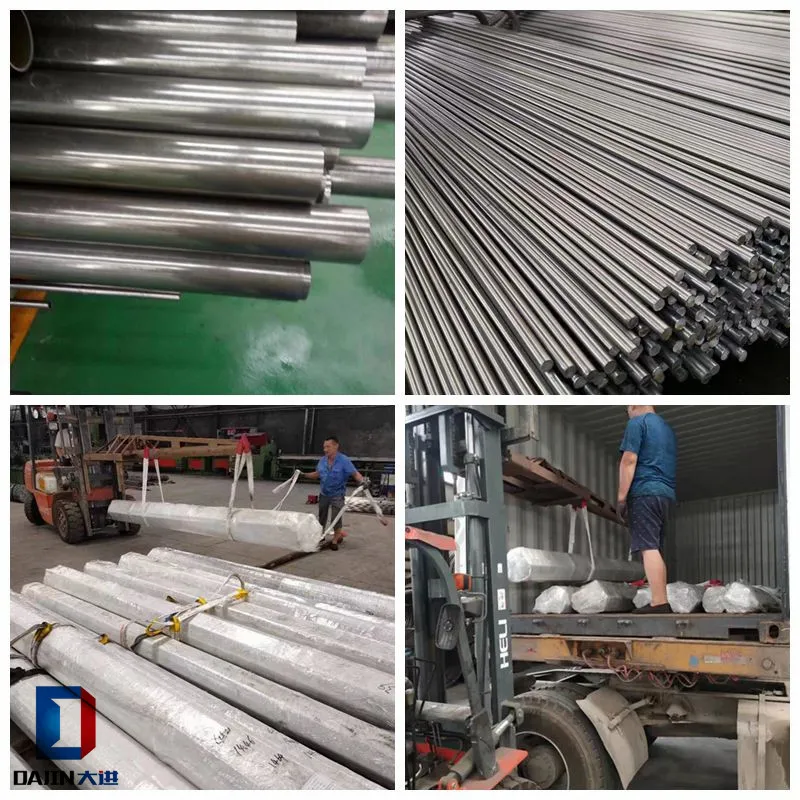

Cold drawn steel bar packaging
5 layer anti-rust strong packaing
Anti-rust oil+Plastic wrap+Woven bag+Plastic wrap+Lifting belt or wooden box
One bundle usually around 1000KG

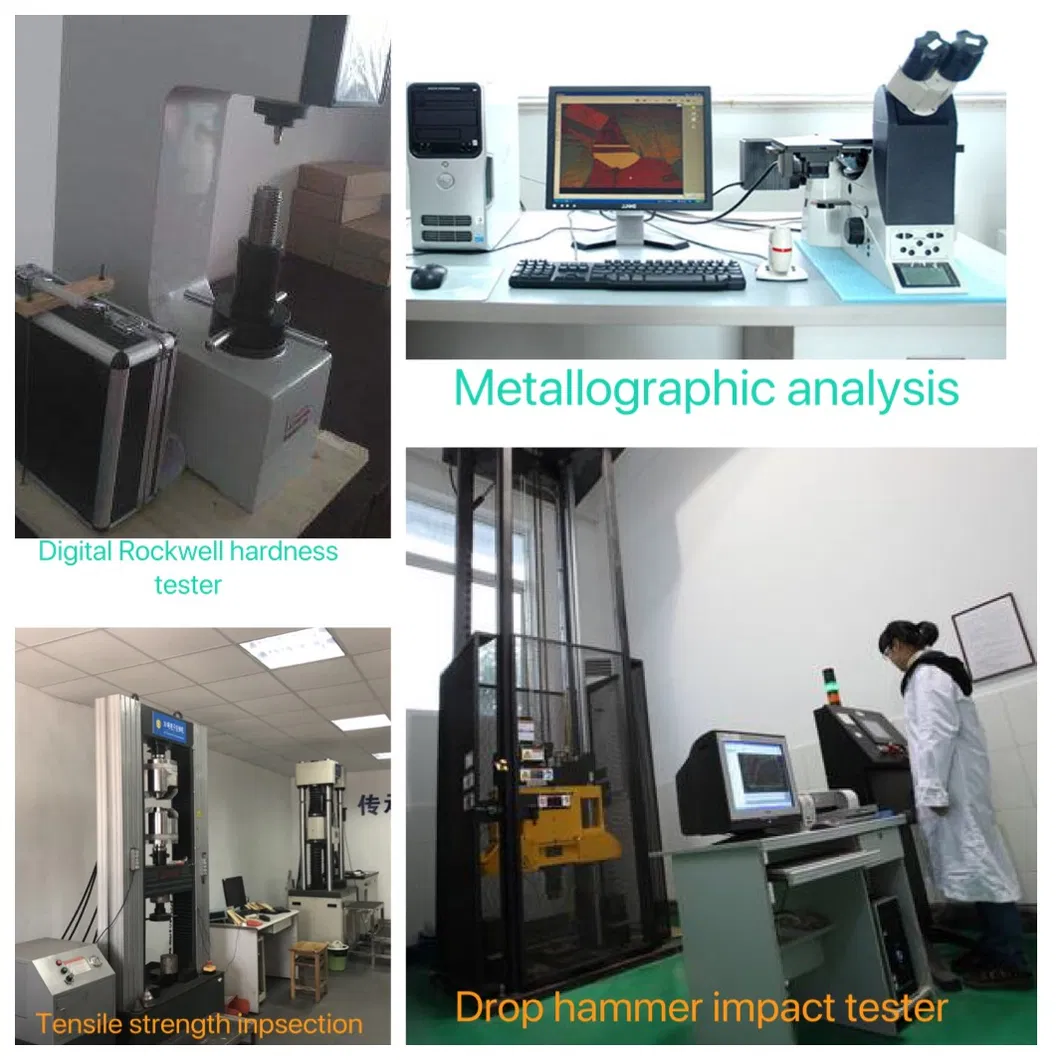

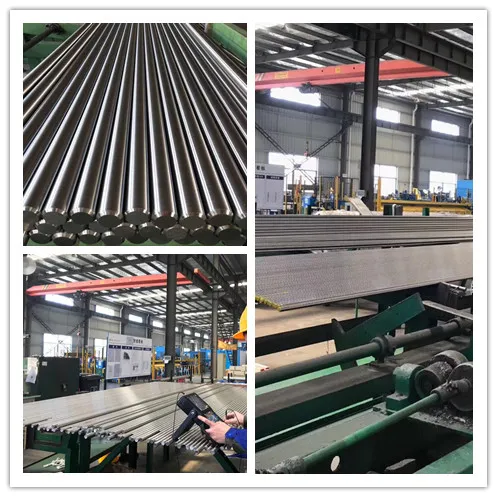

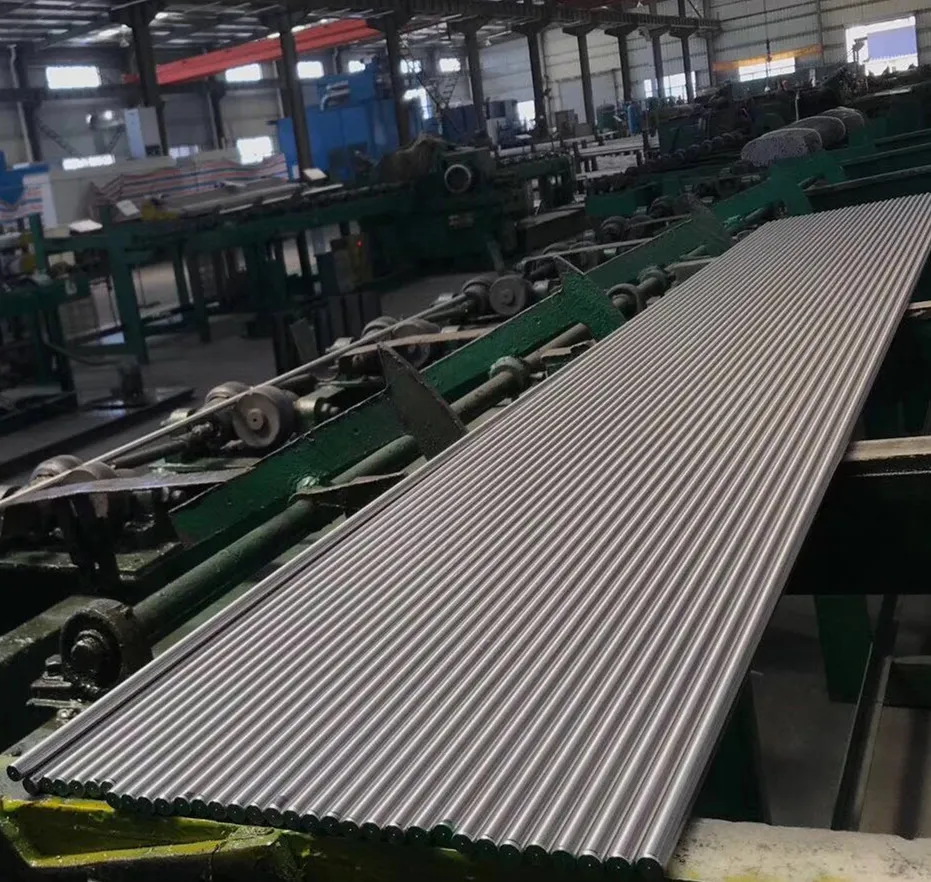

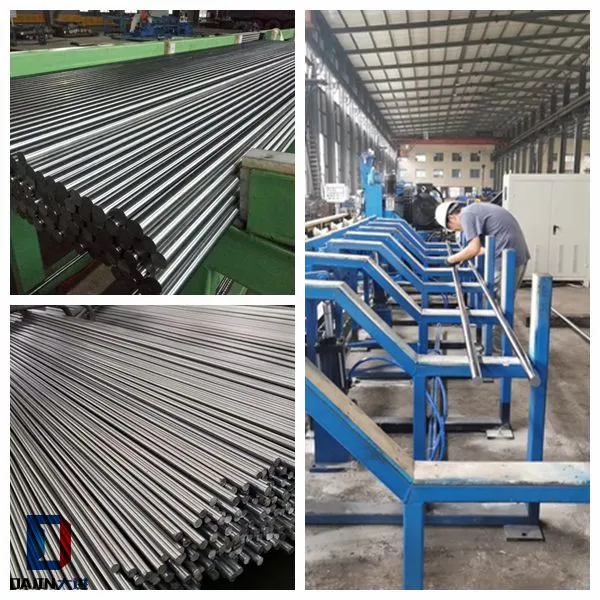

Cold drawn steel bar workshop and lab equipments

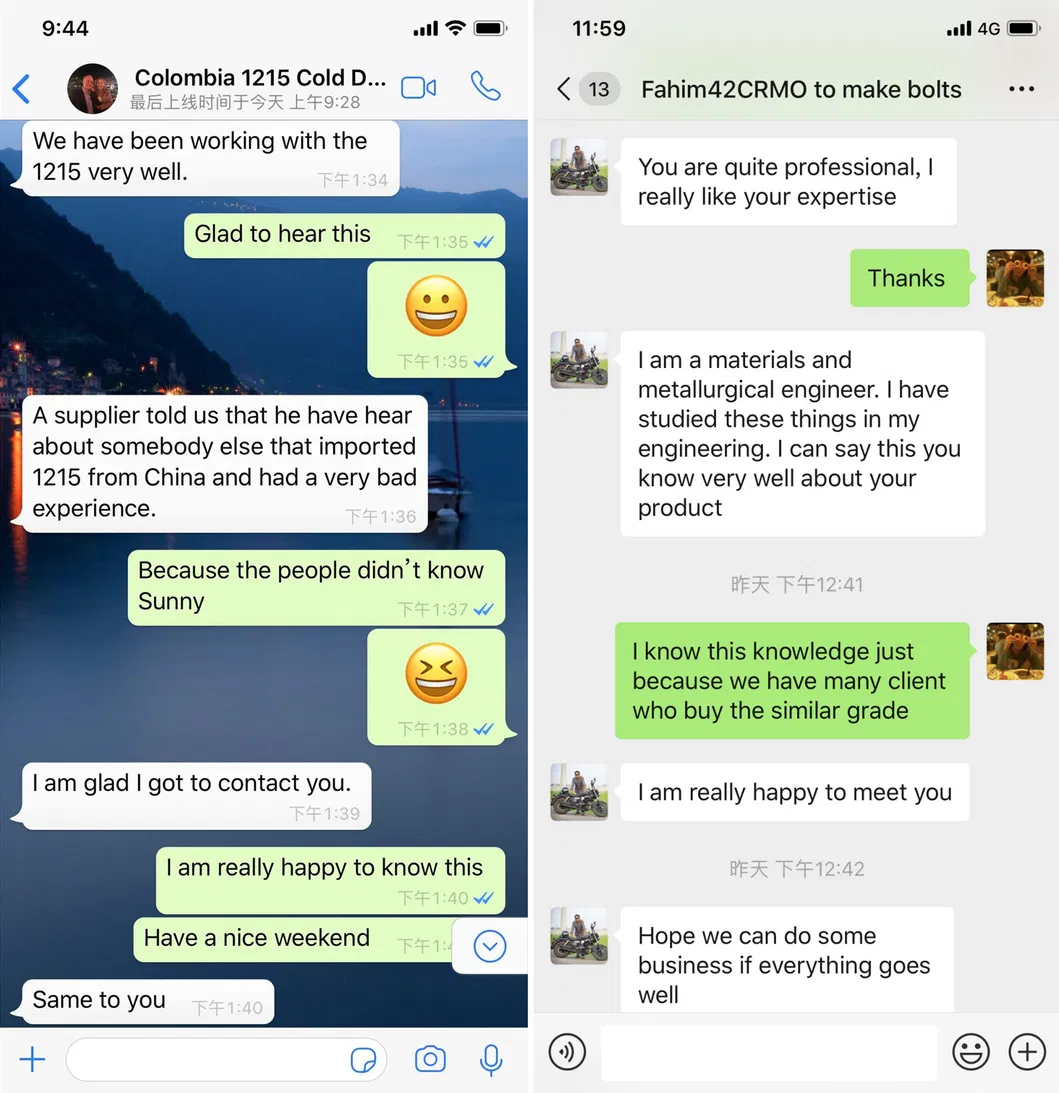

Cold drawn steel bar client's evaluations

Why Choose Us?
1. 10Years+ steel bar export experiences
Familiar with the trade habits of different countries and familiar with the material requirements of different countries
2.Steel grade OEM center
Not only can supply standard grade SAE,JIS,GB,DIN,EN;
But also can produce new grade according to client's Spec and final usage,provide professional suggestion.
3.Steel processing Center
Supply steel processing services,such as cutting,drilling,painting,machining and heat treatment.
4.Ready stock,fast shipment
Always keep 5000ton stock for grade 4140,1045,1020 hot rolled steel bar,1000ton stock of 1020 1045 1215 cold drawn free cutting steel.
Delivery 7-10days for the stock size;20-25days for the fresh production.
5.Rich resources of steel,Completely supplier management system
We are the first level agent of Baosteel,Shagang,HBIS,Tisco,Valin,Shansteel etc.
6.Completely quality control system
We have full QC system,two professional technicians and one pre-shipment inspector.
