1215 12L14 Free Cutting Cold Drawn Round Square Hexagonalsteel Bar
Round, Hexagon, Square,AISI1215 cold drawn Free Cutting Steel bar 1.0715 11SMn30 SUM23 12151215 En1a steel | Round, Hexagon, Square, Leaded of Free Cutting SteelCold drawn steel bar1.AISI1215 cold drawn steel barAISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and c......
Send Inquiry
Product Description
Round, Hexagon, Square,AISI1215 cold drawn Free Cutting Steel bar 1.0715 11SMn30 SUM23 1215
1215 En1a steel | Round, Hexagon, Square, Leaded of Free Cutting Steel

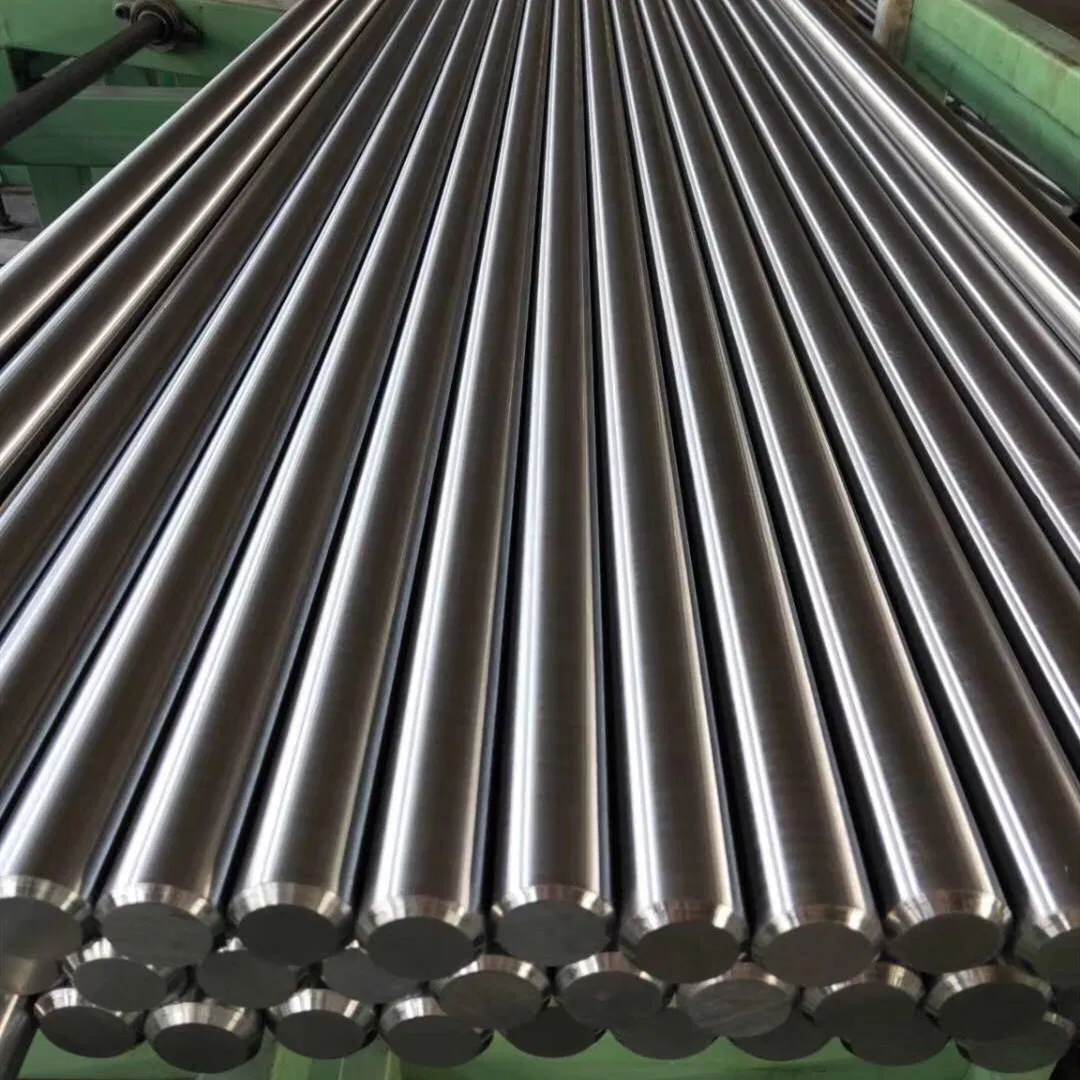

Cold drawn steel bar
1.AISI1215 cold drawn steel bar
AISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and consistent level of machinability but limited strength and ductility..
2.AISI 1215 Cold drawn steel bar Typical applications
Heavily mahined components and parts subject to low stress levels,low shock loading,with limited and forming
3.AISI 1215 cold drawn steel bar main type and avaliable sizes
4.AISI 1215 Cold drawn steel bar size tolerance
h9,h10,h11 or other tolerance according to client's requirement
5.AISI 1215 Cold drawn steel bar chemical composition(%)
6.AISI 1215 Alternative grade in different standard
7.AISI 1215 Typical Mechanical Properties - Cold Drawn and Turned and Polished Condition
8.Straightness: 1mm/m(max)

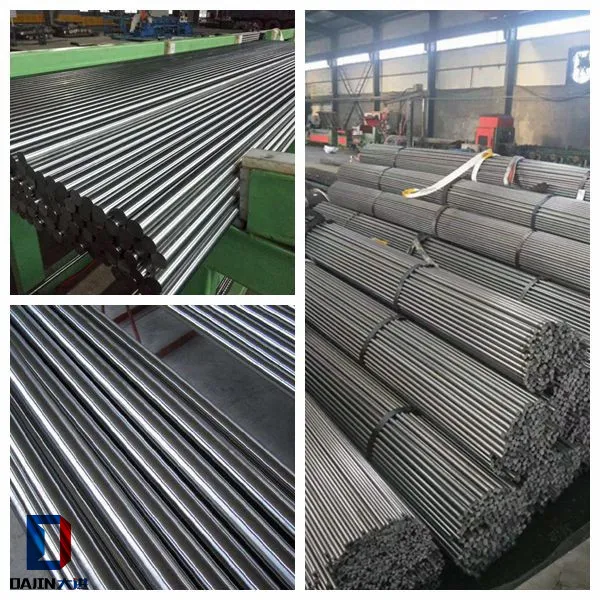

9. Steel bar Packing:
*Bars from different heats will not be mixed and dispatched.
*Bars will be bundles and securely metal strapped in 3 min places of the bar length and tagged properly.
*For further processing products such as cold drawn/peeled or heat treated goods, plastics bag wrapped or pallet loading is available according to customer's demands.
10.Delivery time of steel bar:
7-10days of stock,30 days after order confirmed of new material
11.Payment term:TT or LC
12.Free sample:Yes
13.steel bar Inspection: Spectral Tested, Microstructure Tested,Hardness Test,Macrostructure Test,UT test
14.Our cold drawn factory equipments
We adopt advanced production technology and first-class processing equipments, such as heat treatment furnace, straightening machine, centerless grinding machine, polishing machine, as well as lathing and milling machine etc.
Type and Avaliable size of cold drawn steel bar
Supply Grade of cold drawn steel bar
Cold drawn steel bar tolerance:h8,h9,h10,h11
Our Quality key points of cold drawn steel
*The Min size tolerance we can produce is -0.02mm/+0mm.
* The Min Straightness can be 0.2mm/m
* Surface very shinny and smoothly(Min roughness can be 0.4um)
* Control the mechanical properties through annealing,normalized,quchening and tempering heat treatment
*Full inspection equirment,it can test size,rougness,UT level,properties,hardness etc
Type and Avaliable size of cold drawn steel bar
Supply Grade of cold drawn steel bar
Cold drawn steel bar tolerance:h8,h9,h10,h11
Our Quality key points of cold drawn steel
*The Min size tolerance we can produce is -0.02mm/+0mm.
* The Min Straightness can be 0.2mm/m
* Surface very shinny and smoothly(Min roughness can be 0.4um)
* Control the mechanical properties through annealing,normalized,quchening and tempering heat treatment
*Full inspection equirment,it can test size,rougness,UT level,properties,hardness etc
Keywords:polished steel rod,cold drawn steel bar,steel bar,
Our company
1215 En1a steel | Round, Hexagon, Square, Leaded of Free Cutting Steel
Cold drawn steel bar
1.AISI1215 cold drawn steel bar
AISI 1215 Low Carbon Free Cutting steel,bright drawn or smooth turned with a high and consistent level of machinability but limited strength and ductility..
2.AISI 1215 Cold drawn steel bar Typical applications
Heavily mahined components and parts subject to low stress levels,low shock loading,with limited and forming
3.AISI 1215 cold drawn steel bar main type and avaliable sizes
| Round bars | 5mm-130mm |
| Suqare bar | 6*6mm-100*100mm |
| Flat bars | 3mm*20mm-50mm*100mm |
| Hex bars | 6mm-100mm |
| Bar Finsihe | Peeled, Cold Drawn, TurnedTurned & Polished, Centreless Ground |
4.AISI 1215 Cold drawn steel bar size tolerance
h9,h10,h11 or other tolerance according to client's requirement
5.AISI 1215 Cold drawn steel bar chemical composition(%)
| C | Si | Mn | P | S |
| 0.07 | 0.01 | 1.00 | 0.05 | 0.30 |
6.AISI 1215 Alternative grade in different standard
| AS1443-1994 | 1214 |
| BS 970-3-1991 | 230M07 |
| EN 10277 | 1.0715 11SMn30 |
| JIS G4804 | SUM22 or SUM23 |
| SAE&UNS | 1215&G12150 |
7.AISI 1215 Typical Mechanical Properties - Cold Drawn and Turned and Polished Condition
| Finish | Yield Strength Mpa | TensileStrength Mpa | Elongation | Hardness HB |
| Bright Drawn | 290-550 | 400-650 | 7 Min | 115-200 |
| Smooth Turned | 230-310 | 370-500 | 17 Min | 100-150 |
8.Straightness: 1mm/m(max)

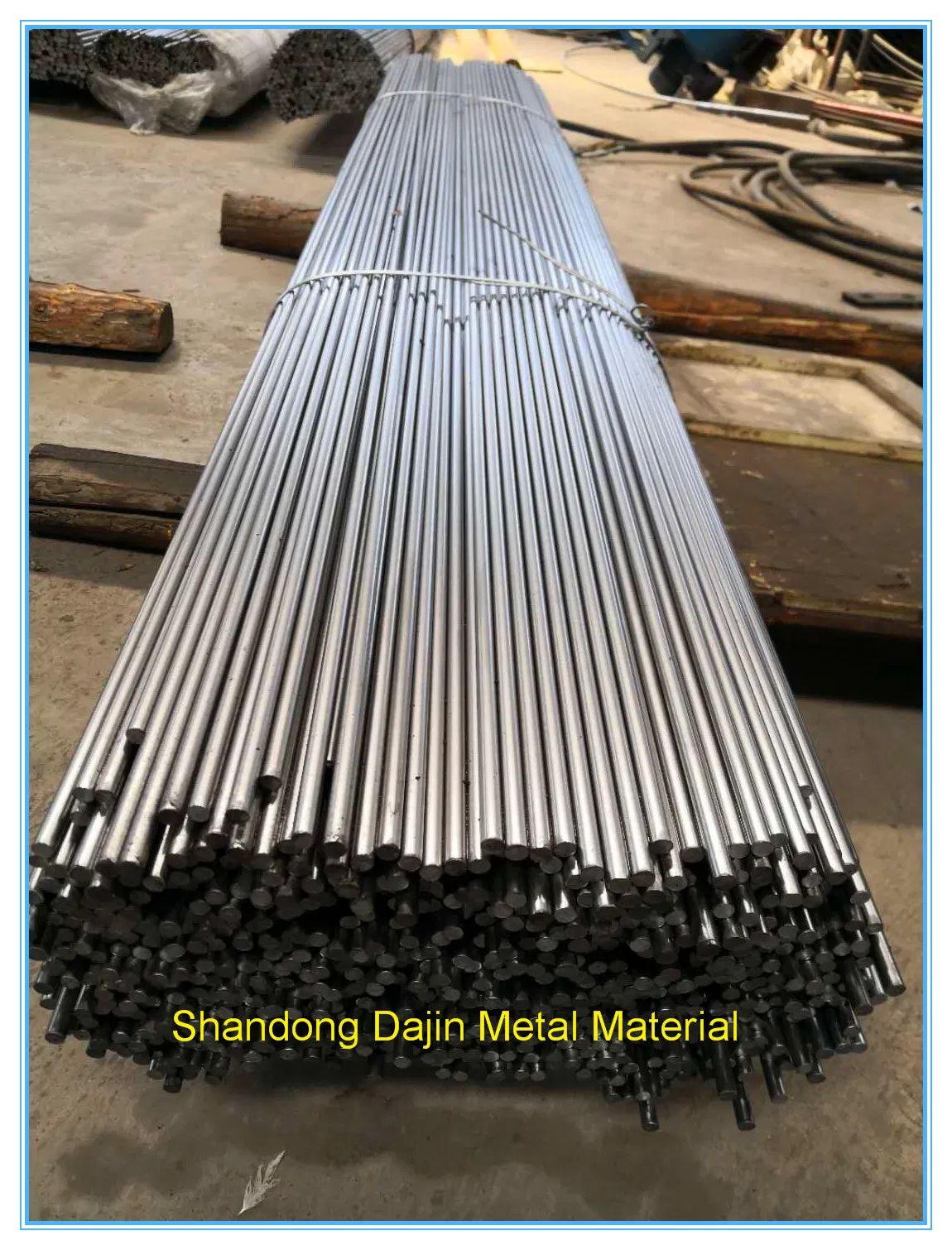

9. Steel bar Packing:
*Bars from different heats will not be mixed and dispatched.
*Bars will be bundles and securely metal strapped in 3 min places of the bar length and tagged properly.
*For further processing products such as cold drawn/peeled or heat treated goods, plastics bag wrapped or pallet loading is available according to customer's demands.
10.Delivery time of steel bar:
7-10days of stock,30 days after order confirmed of new material
11.Payment term:TT or LC
12.Free sample:Yes
13.steel bar Inspection: Spectral Tested, Microstructure Tested,Hardness Test,Macrostructure Test,UT test
14.Our cold drawn factory equipments
We adopt advanced production technology and first-class processing equipments, such as heat treatment furnace, straightening machine, centerless grinding machine, polishing machine, as well as lathing and milling machine etc.

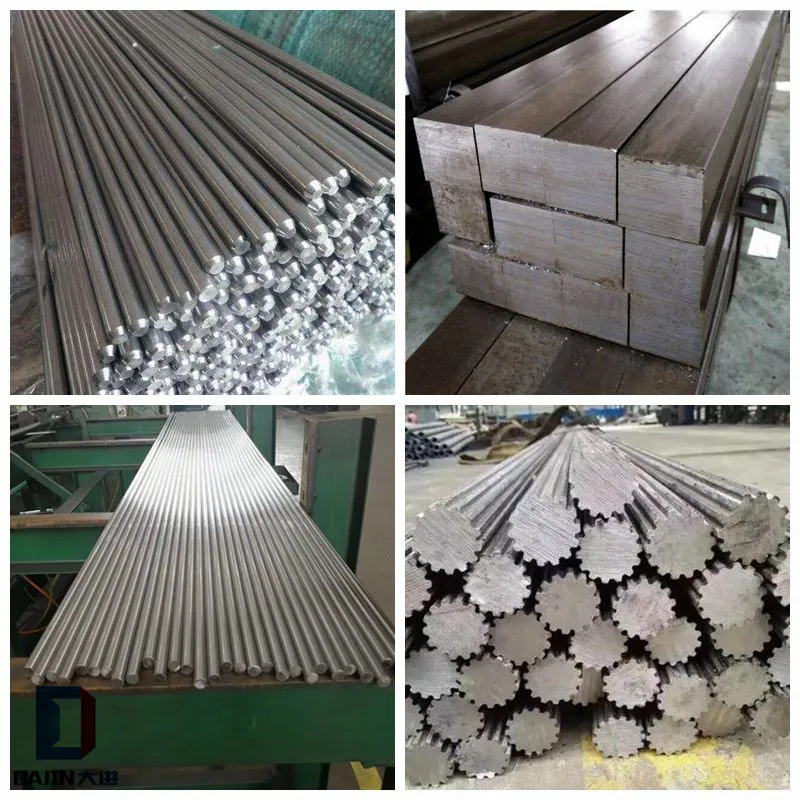

Type and Avaliable size of cold drawn steel bar
| Cold drawn steel bar type | Size range |
| Round bar | 5mm-100mm |
| Square bar | 6*6mm-90*90mm |
| Flat bar | 3mm*20mm-50mm*100mm |
| Hexgonal bar | 4mm-80mm |
| Section steel bar | As client'd drawing |
| Bar Finishe | Peeled,col drawn,turned&polished,centreless ground |
Supply Grade of cold drawn steel bar
| Grade Type | JIS | AISI/SAE | DIN |
| Carbon&cold heading | S10C,S20C,S25C, S35C,S45C,SWRCH10/ 15/20/35/45/48K | SAE1008,1010,1018, 1020,1035,1045 | 1.0213,10214, 1152,1.1172, 1.1192 |
| Alloy | SCr420,SCr440, SCM415,SCM420, SCM435,SCM440, SNCM220,SNCM420 | 1541,5120,5140, 4115,4120,4130, 4140,4145,4145H, 8620,4320,4340 | 1.7015,1.7035, 1.7218,1.7220, 1.7225,1.6582, 1.6511,1.7038 |
| Stainless | SUS F304, SUS316, 303Cu | F304,F316,316L | 1.4301,1.4306, 1.4404 |
| Free cutting | SUM21,SUM22, SUM23,SUM43, SUM24L | 12L14,1215, 1213,1141,1144 | 11SMn30, 1.0715,1.0718, 11SMnPb30, 11SMnPb28 |
Cold drawn steel bar tolerance:h8,h9,h10,h11
| Size(mm) | Tolerance | |||
| 6-10 | h8 | h9 | h10 | h11 |
| 10-18 | -0.022/+0mm | -0.036/+0mm | -0.058/+0mm | -0.090+0mm |
| 18-30 | -0.027/+0mm | -0.043/+0mm | -0.070/+0mm | -0.110/+0mm |
| 30-50 | -0.033/+0mm | -0.052/+0mm | -0.084/+0mm | -0.130/+0mm |
| 50-80 | -0.039/+0mm | -0.062/+0mm | -0.100/+0mm | -0.160+0mm |
| 80-100 | -0.046/+0mm | -0.074/+0mm | -0.120/+0mm | -0.190/+0mm |
Our Quality key points of cold drawn steel

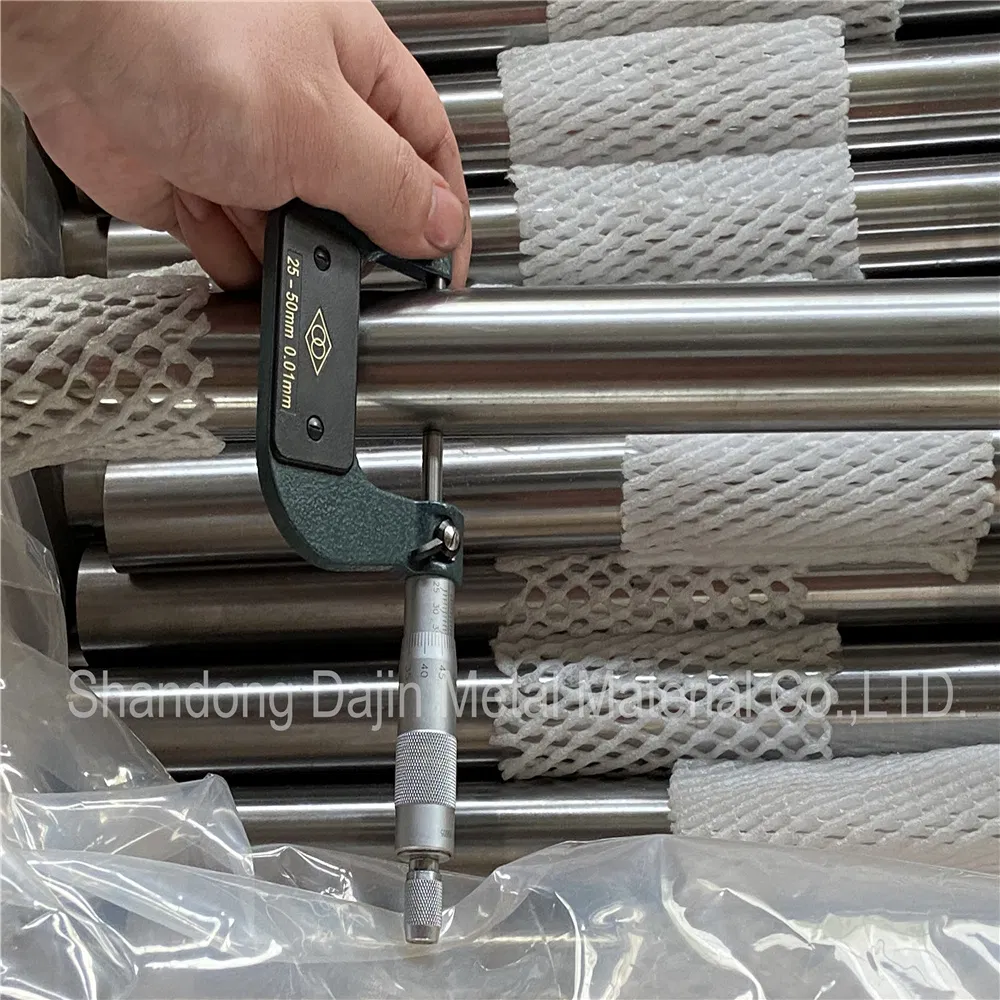

*The Min size tolerance we can produce is -0.02mm/+0mm.
* The Min Straightness can be 0.2mm/m
* Surface very shinny and smoothly(Min roughness can be 0.4um)
* Control the mechanical properties through annealing,normalized,quchening and tempering heat treatment
*Full inspection equirment,it can test size,rougness,UT level,properties,hardness etc
Type and Avaliable size of cold drawn steel bar
| Cold drawn steel bar type | Size range |
| Round bar | 5mm-100mm |
| Square bar | 6*6mm-90*90mm |
| Flat bar | 3mm*20mm-50mm*100mm |
| Hexgonal bar | 4mm-80mm |
| Section steel bar | As client'd drawing |
| Bar Finishe | Peeled,col drawn,turned&polished,centreless ground |
Supply Grade of cold drawn steel bar
| Grade Type | JIS | AISI/SAE | DIN |
| Carbon&cold heading | S10C,S20C,S25C, S35C,S45C,SWRCH10/ 15/20/35/45/48K | SAE1008,1010,1018, 1020,1035,1045 | 1.0213,10214, 1152,1.1172, 1.1192 |
| Alloy | SCr420,SCr440, SCM415,SCM420, SCM435,SCM440, SNCM220,SNCM420 | 1541,5120,5140, 4115,4120,4130, 4140,4145,4145H, 8620,4320,4340 | 1.7015,1.7035, 1.7218,1.7220, 1.7225,1.6582, 1.6511,1.7038 |
| Stainless | SUS F304, SUS316, 303Cu | F304,F316,316L | 1.4301,1.4306, 1.4404 |
| Free cutting | SUM21,SUM22, SUM23,SUM43, SUM24L | 12L14,1215, 1213,1141,1144 | 11SMn30, 1.0715,1.0718, 11SMnPb30, 11SMnPb28 |
Cold drawn steel bar tolerance:h8,h9,h10,h11
| Size(mm) | Tolerance | |||
| 6-10 | h8 | h9 | h10 | h11 |
| 10-18 | -0.022/+0mm | -0.036/+0mm | -0.058/+0mm | -0.090+0mm |
| 18-30 | -0.027/+0mm | -0.043/+0mm | -0.070/+0mm | -0.110/+0mm |
| 30-50 | -0.033/+0mm | -0.052/+0mm | -0.084/+0mm | -0.130/+0mm |
| 50-80 | -0.039/+0mm | -0.062/+0mm | -0.100/+0mm | -0.160+0mm |
| 80-100 | -0.046/+0mm | -0.074/+0mm | -0.120/+0mm | -0.190/+0mm |
Our Quality key points of cold drawn steel
*The Min size tolerance we can produce is -0.02mm/+0mm.
* The Min Straightness can be 0.2mm/m
* Surface very shinny and smoothly(Min roughness can be 0.4um)
* Control the mechanical properties through annealing,normalized,quchening and tempering heat treatment
*Full inspection equirment,it can test size,rougness,UT level,properties,hardness etc
Keywords:polished steel rod,cold drawn steel bar,steel bar,
