China Open Die Forging Steel Round Bar S55c C55 1055 070m55/En9 Main Shaft

Product Description

Open Die Forging Steel Round Bar S55C C55 1055 070M55/EN9 Motor Shaft

Open Die Forging Steel Round Bar S55c C55 1055 070m55/En9 Main Shaft

1: 1055 steel introduction

1055 steel is an unalloyed medium carbon engineering steel which has 0.52%-0.6% Carbon as per EN10083 standard.It will obtain high hardness and high strength after hardening due to the relatively high carbon content,and also can be flame or induction hardened to surface hardness Min 58HRC.C55 steel is generally supplied in an untreated or normalised condition

2.Chemical Composition

Grade	C	Mn	P	S	Si	Cr	Mo	Ni	Cr+Mo+Ni
C55/1.0535	0.52-0.6	0.60-0.90	≤ 0.045	≤ 0.045	≤ 0.4	≤ 0.4	≤ 0.1	≤ 0.4	≤ 0.63
C55E/1.1203	0.52-0.6	0.60-0.90	≤ 0.03	≤ 0.035	≤ 0.4	≤ 0.4	≤ 0.1	≤ 0.4	≤ 0.63
C55R/1.1209	0.52-0.6	0.60-0.90	≤ 0.03	0.02-0.04	≤ 0.4	≤ 0.4	≤ 0.1	≤ 0.4	≤ 0.63

3.Relevant Standards

USA	UK	China	Japan	Australia
1055	070M55 / EN9	55#	S55C	1055

4: 1055 steel mechanical properties

Mechanical properties a at room temperature in the quenched and tempered condition (+QT)
Diameter d mm	≤ 16	16-40	40-100
Thickness t mm	< 8	8-20	20-60
Yield Strength Mpa	≥550	≥490	≥420
Tensile Strength Mpa	800-950	750-900	700-850
Elongation, %	≥12	≥14	≥15
Reduction of area ,%	≥30	≥45	≥40

Mechanical properties a at room temperature in the normalized condition (+N)
Diameter d mm	≤ 16	16-100	100-250
Thickness t mm	≤ 16	16-100	100-160
Yield Strength Mpa	≥370	≥330	≥300
Tensile Strength Mpa	≥680	≥640	≥620
Elongation, %	≥11	≥12	≥12

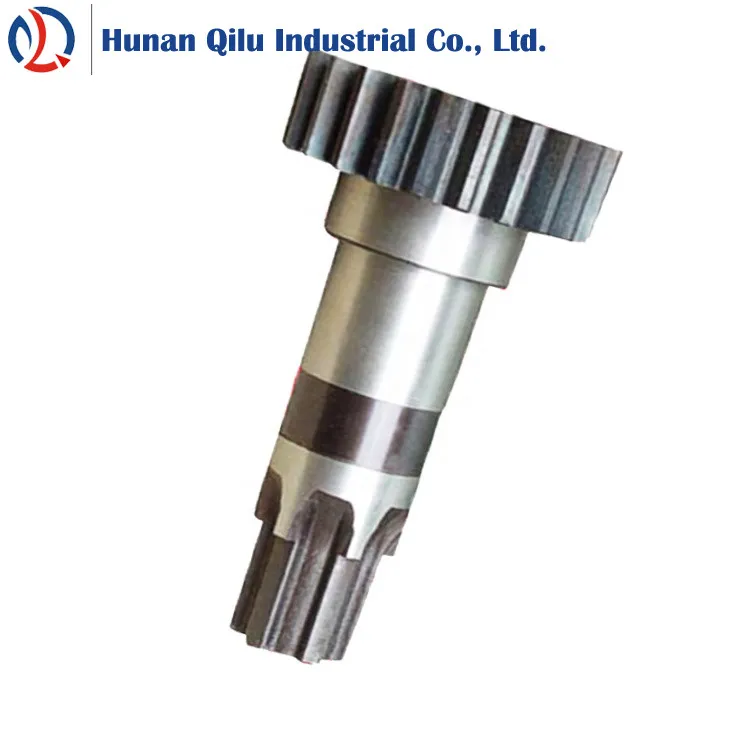

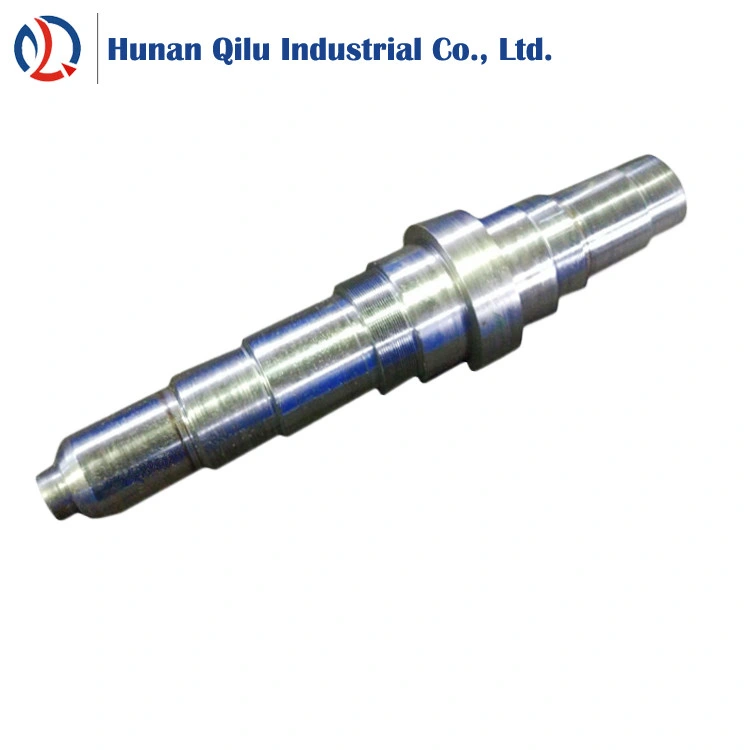

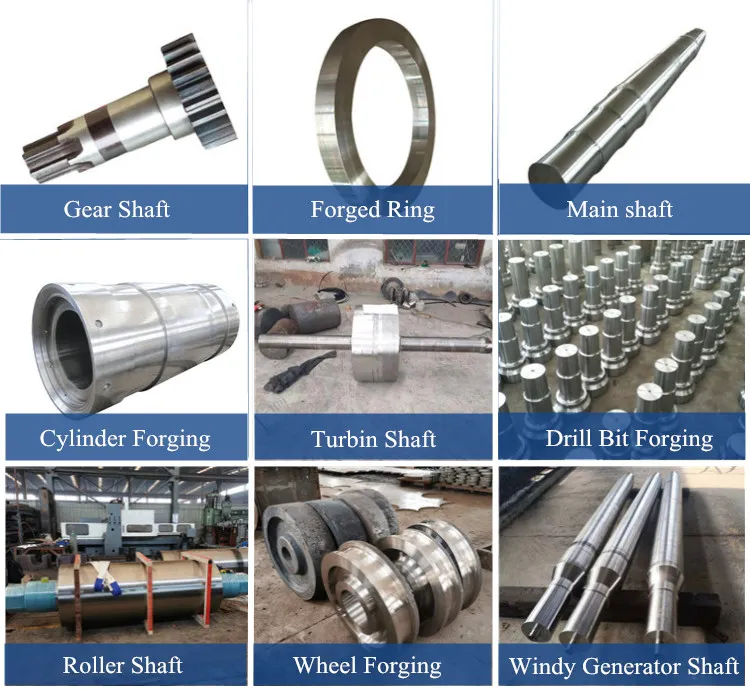

Hunan Qilu Industrial Co., Ltd has the capacity to guarantee the quality for every step, from raw material (forging), then heating treatment, finally machining. We have our own forging mill, heating teatment shop and machining shop. At present we could supply various of lage main shaft, turbin shaft, cylinder shaft, windy generator shaft, roller shaft, wheel forging, drill bit forging and kinds of irregular parts based on the drawing provided by customers.

Hot Forged Alloy Steel Carbon Steel Flat Head Shaft Drive Flat Head Shaft

Hot Forged Alloy Steel Carbon Steel Flat Head Shaft Drive Flat Head Shaft

Steel material for shaft and forging parts:

Engineering Steel
GB GB/T 700	JIS JIS G3101	DIN (W-Nr.) EN10025-2 / DIN17100	AISI/ASTM ASTM A36	BS	OTHERS
Q235B	SS400	S235JR / RST37-2	A36
Q235C		S235J0 / ST37-3 U
Q235D		S235J2
GB GB/T1591	JIS	DIN (W-Nr.) EN10025-2 / DIN17100	AISI/ASTM	BS	OTHERS
Q355B		S355JR
Q355C		S355J0 / ST52-3U
Q355D		S355J2 / ST52-3 N
Q355E		S355K2
GB GB/T 699	JIS JIS G4051	DIN (W-Nr.) EN 10083-2	AISI/ASTM ASTM A20	BS	OTHERS
			1018	EN2C
20	S20C	C20	1020	EN3B/070M20	ASTM A105
35	S35C	C30	1035
45	S45C	C45E/1.1191	1045	EN8D/080M40
50	S50C	C50/1.1206	1050	080M50
55	S55C	C55	1055	EN9/070M55
GB GB/T 3077	JIS JIS G4105/JIS G4103	DIN (W-Nr.) EN 10250	AISI/ASTM ASTM A29	BS BS 970	OTHERS
40Cr	SCr440	41Cr4(1.7035)	5140
15CrMo	SCM415	16CrMo44/1.7337
20CrMo	SCM420	18CrMo4/1.7243	4118
30CrMo	SCM430	25CrMo4/1.7218	4130	708A25/708M25
42CrMo	SCM440	42crmo4/1.7225	4140	EN19/709M40
	SCM445		4145
40CrNiMoA	SNCM 439/SNCM8	36CrNiMo4/1.6511	4340	EN24/817M40
		40NiMoCr10-5/1.6745		EN26/826M40
		34CrNiMo6 / 1.6582	4337
		30CrNiMo16-6/1.6747	4330V	EN30B/835M30
		32CrMo12/1.7361		EN40B/722M24
16CrMnH / 20CrMnTi		16MnCr5 / 1.7131	5115
20CrMn		20MnCr5 / 1.7147
		15CrNi6/1.5919	3115
		16NiCr4/1.5714		EN351/637M17
			4615/4617	EN34/665M17
		14NiCr14/1.5752	3310/3415	EN36/655M13
		15NiCrMo16-5/1.6723		EN39/835M15
17CrNiMo6		18CrNiMo7-6 (1.6587)	4815
20CrNiMo	SNCM220	1.6523/21NiCrMo2	8620	805M20
		20CrNiMo5		EN353
GCr15	SUJ2	52100/1.3505		EN31/535A99
38CrMoAl	SACM645	41CrAlMo7/34CrAlMo5		905M39/905M31	41CrAlMo74(ISO)

Hunan Qilu Industrial Co., Ltd were already engaged in exporting steel for 11 years, could supply a great variety of hot forged, hot rolled and cold drawn Steels, including engineering steel, cold work tool steel, hot work tool steel, plastic mold steel, spring steel, high speed steel, stainless steel etc., besides Qilu Industrial also has their own heating treatment shop and machining shop to provide heating and cutting service.

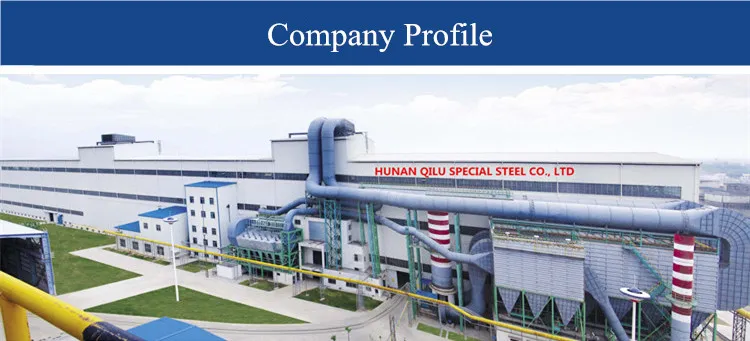

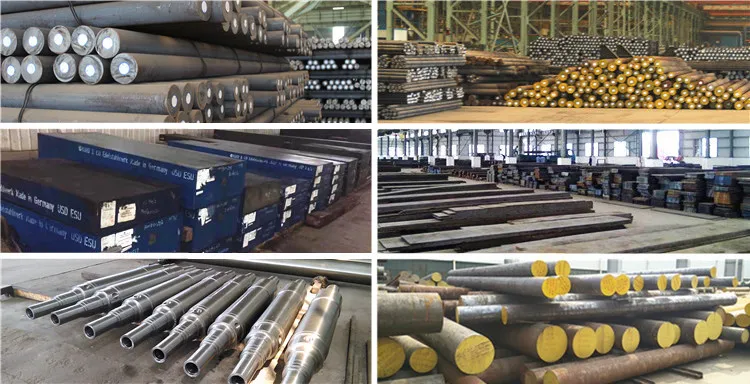

Since 2008 year, Hunan Qilu Industrial has the right to export all FORGED STEEL behalf of Qilu Speical Steel Co.,ltd which is specialized in smelting and forging of special steel since 1965 year, now Qilu special steel is one of the biggest manufacturer of forged product in China.The forged products are used in Automotive, Aerospace, Power Generation, Oil & Gas, Transportation and Industrial. We already set up the warehouse in Wuxi and Dongguan city, more than 20000 tons ex-stock could be supplied with kinds of size.

Qilu Industrial is the professional one-stop steel manufacturer, stockist and exporter in China, our customers spread all over the world, include West Europe, North America, South America, Asia, Middle Asia, Africa, Australia, etc.

Open Die Forging Steel Round Bar S55c C55 1055 070m55/En9 Main Shaft

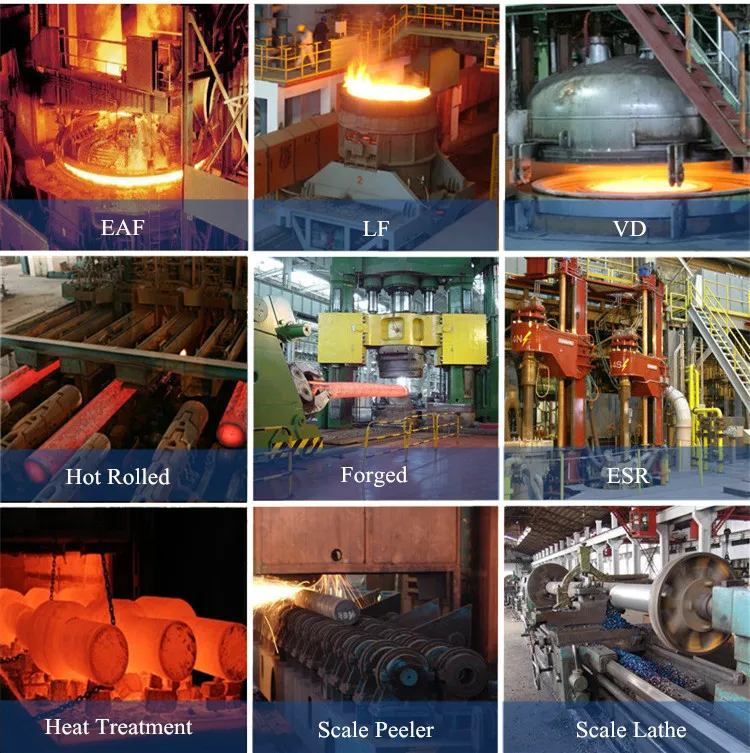

The company owns advanced special steel smelting facilities and forging processing equipments, the main steel-making equipment include 2 sets of 50t ultra-high power electric arc furnaces,2 sets of 60t LF refining furnaces,1 set of 60t vacuum degassing refining furnace and 4 sets of 1-20t electroslag re-melting furnaces.
The main forging equipments mainly include:3 sets of 5t electro-hydraulic hammers, 1 set of high-speed forging units of 800t,1600t,2000t and 4500t respectively.

Open Die Forging Steel Round Bar S55c C55 1055 070m55/En9 Main Shaft

Any interests in our company and products, please feel free to contact us for quotation. We warmly welcome you to our factory.

Hunan Qilu Industrial CO., LTD
Web: qilusteel.en.made-in-china.com
