Rotation Resistant Steel Wire Rope 35X7 1960 MPa
Product Details35X7 is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 32X7, 34X7 and 37X7.Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different fin......
Send Inquiry
Product Description
Product Details

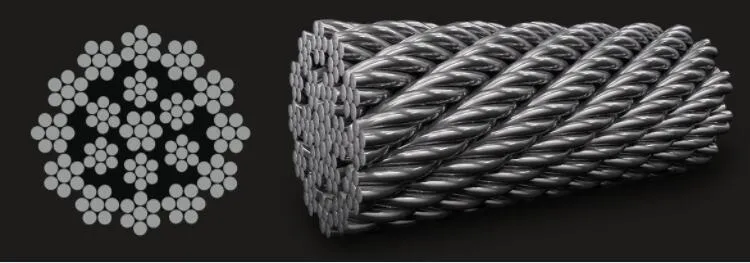

35X7 is available in both galvanised and ungalvanised finish with either ordinary or langs lay. The construction family includes 32X7, 34X7 and 37X7.
Depending upon your requirement for higher breaking load or better wear characteristics, these wire ropes are available in different finishes and lubrications as well as being available with plastic impregnated or in compacted constructions.
Applications
- Offshore crane rope
- Deck crane rope
- Pillar crane rope
- Whip hoist rope
- Main hoist rope
- Crane rope
| Breaking Loads | |||||
|---|---|---|---|---|---|
| Nominal Diameter | Approximate Mass | Minimum Breaking Loads | |||
| 1960 Mpa | 2160 Mpa | ||||
| [mm] | [kg/m] | [kN] | [Kg] | [kN] | [Kg] |
| 8 | 0,291 | 45.20 | 4,610 | 48.40 | 4,940 |
| 9 | 0.368 | 57.20 | 5,830 | 61.20 | 6,240 |
| 10 | 0.454 | 70.60 | 7,200 | 75.60 | 7,710 |
| 11 | 0.549 | 85.40 | 8,710 | 91.50 | 9,930 |
| 12 | 0.654 | 101.61 | 10,363 | 109.00 | 11,100 |
| 13 | 0.767 | 119.25 | 12,163 | 128.00 | 13,100 |
| 14 | 0.890 | 138.30 | 14,106 | 148.00 | 15,100 |
| 16 | 1.162 | 180.63 | 18,424 | 194.00 | 19,800 |
| 18 | 1.471 | 228.61 | 23,318 | 245.00 | 25,000 |
| 20 | 1.816 | 282.24 | 28,788 | 302.00 | 30,800 |
| 22 | 2.197 | 341.51 | 34,834 | 366.00 | 37,300 |
| 24 | 2.615 | 406.43 | 41,455 | 435.00 | 44,400 |
| 26 | 3.069 | 476.99 | 48,652 | 511.00 | 52,100 |
| 28 | 3.559 | 553.19 | 56,425 | 593.00 | 60,500 |
| 32 | 4.650 | 723.00 | 73,700 | 774.00 | 79,000 |
| 36 | 5.880 | 914.00 | 93,200 | 980.00 | 100,000 |
| 38 | 6.560 | 1,020.00 | 104,000 | 1,090.00 | 111,000 |
| 40 | 7,260 | 1,130.00 | 115,000 | 1,210.00 | 123,000 |

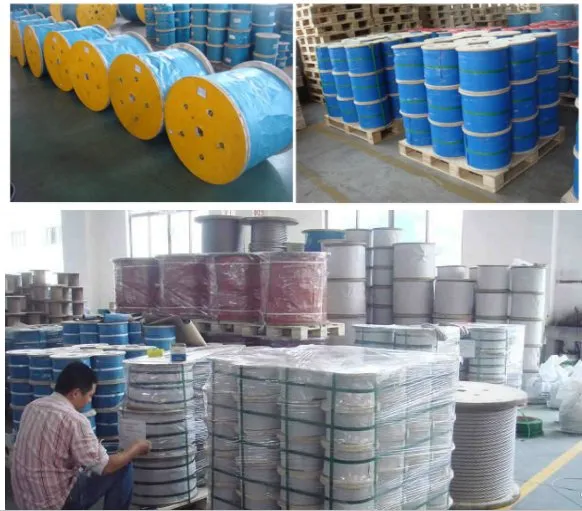

Packaging: Export packaging
500m/reel, 1000m/reel, 2000m/reel, 5000m/reel, etc.
Inner packing:
Wooden reel and craft paper
Outer packing:
Wooden pallet or according to requests
Company information

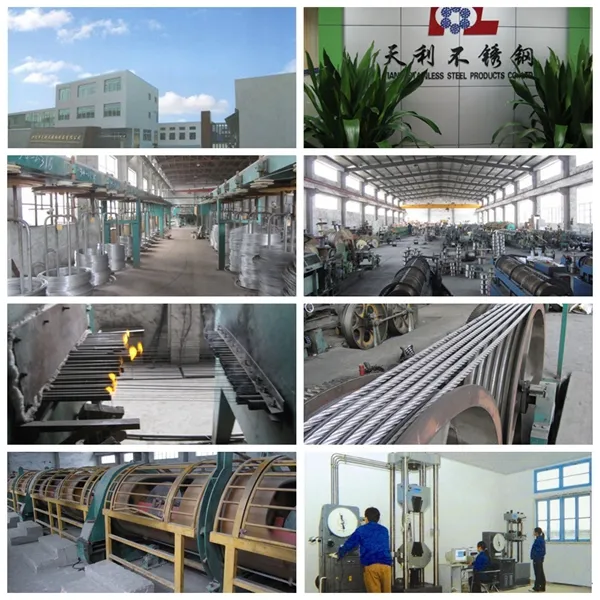

Xinhua City Tianli Steel Product Co., Ltd is founded in 1997.We are a large-scale production plant which specialized in producing high quality stainless steel wire, stainless steel wire rope, and PVC/Nylon/PE coated stainless steel wire products.
Our company serves both domestic and international market.Our products are with hith quality and competitive price.We are the official supplier for Chinese high speed train project.Moreover,our products are widely exported to worldwide market,such as US,Europe,Asian market
