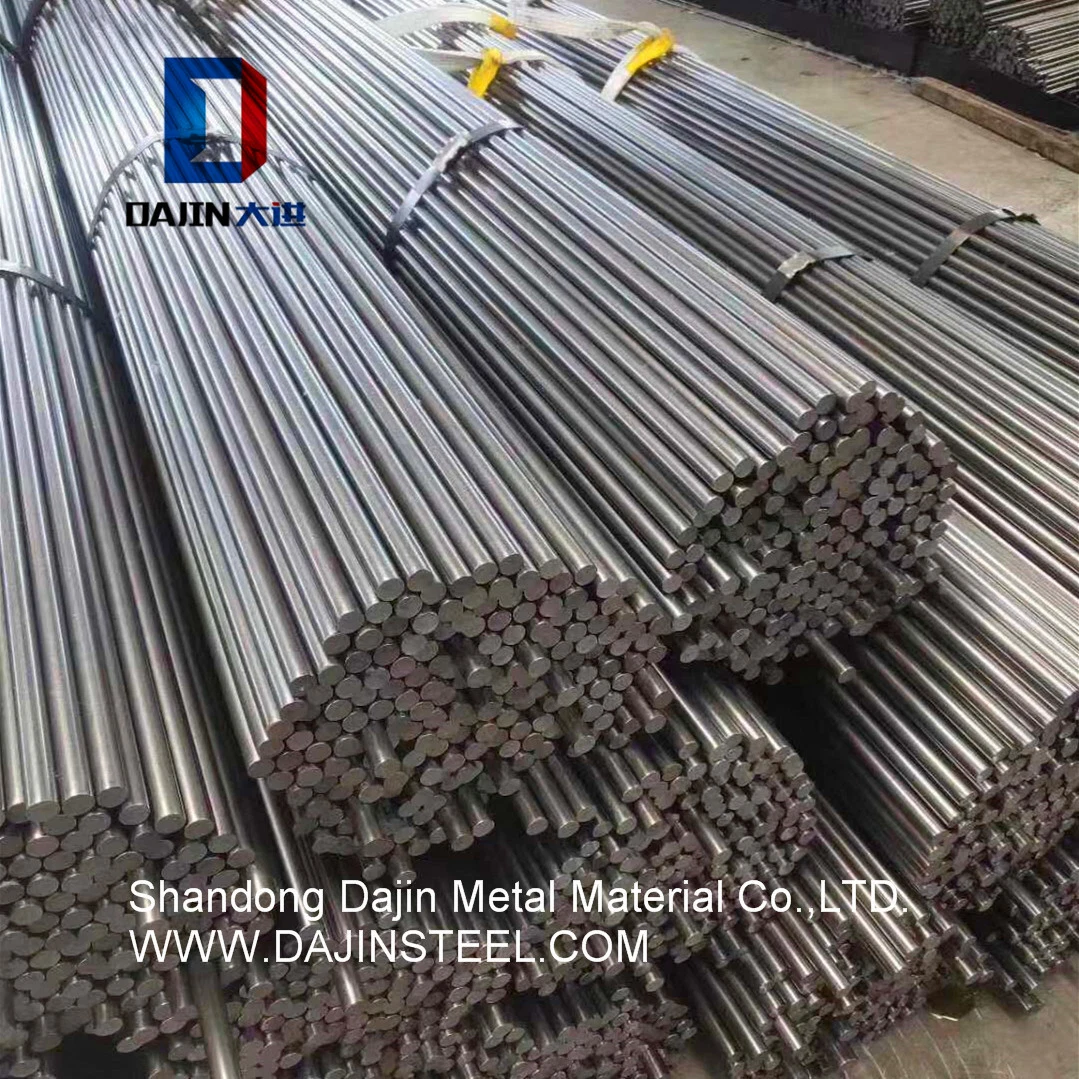

SAE1020 1018 Ss400 1215 Cold Drawn Round Hexagon Steel Bar

Product Description

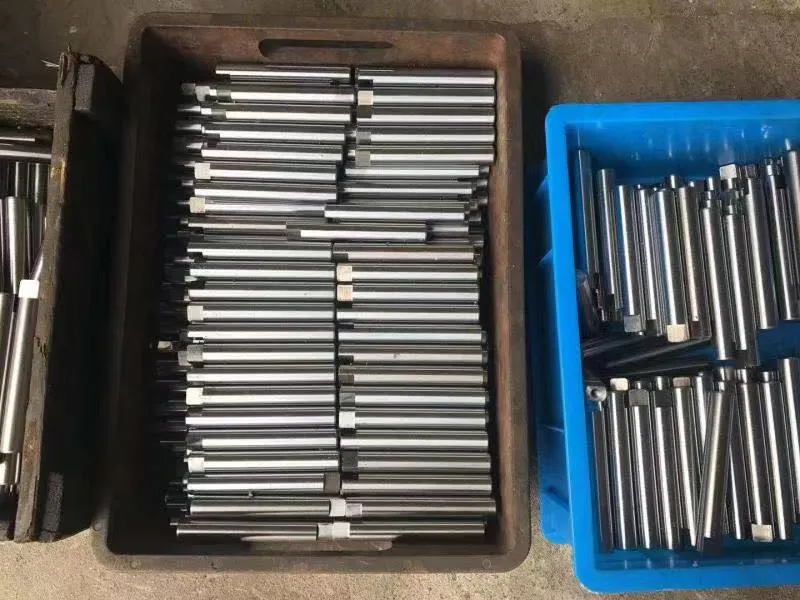

SAE1020 1018 SS400 1215 cold drawn round hexagon steel bar
AISI 1018 Cold drawn steel bar cold rolld steel bars

1.AISI1018 cold drawn steel bar

CD 1018 bar is a low carbon steel with a medium manganese content. Has good case hardening properties, fair machinability and is excellent for cold bending and forming operations. Readily welded and brazed.
SAE1020 1018 Ss400 1215 Cold Drawn Round Hexagon Steel Bar

2.AISI 1018 Cold drawn steel bar Typical applications

Suitable for general shafting purposes and for applications that do not require the greater strength of high carbon and alloy steels.

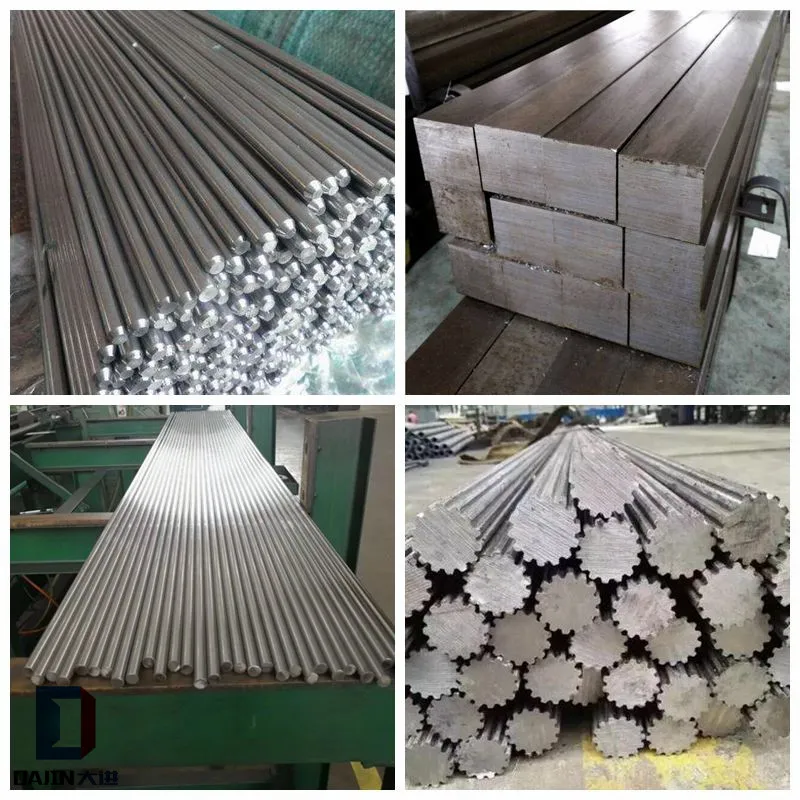

3.AISI 1018 cold drawn steel bar main type and avaliable sizes

Round bars	5mm-130mm
Suqare bar	66mm-100100mm
Flat bars	3mm20mm-50mm100mm
Hex bars	6mm-100mm
Bar Finsihe	Peeled, Cold Drawn, TurnedTurned & Polished, Centreless Ground

4.AISI 1018 Cold drawn steel bar size tolerance

h9,h10,h11 or other tolerance according to client's requirement

5.AISI 1018 Cold drawn steel bar chemical composition(%)

C	Si	Mn	P	S
0.15-0.20	0.15-0.35	0.60-0.90	0.030	0.030

6.AISI 1018 Alternative grade in different standard

GB	20Mn
ASTM	1018
JIS	S18C
DIN	CK18

7.AISI 1018 Typical Mechanical Properties - Cold Drawn and Turned and Polished Condition

Tensile Strength,Mpa	Min 440
Yiled Strength,Mpa	Min 372
Elongation(%)	15
Reduction of Area(%)	40
Brinell Hardness	126

8.Straightness: 1mm/m(max)

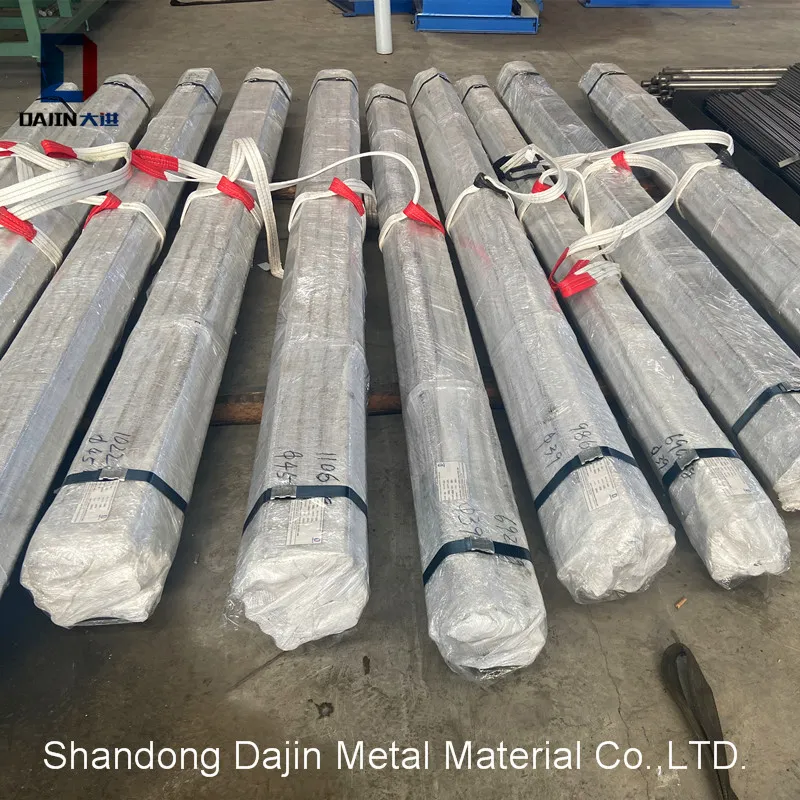

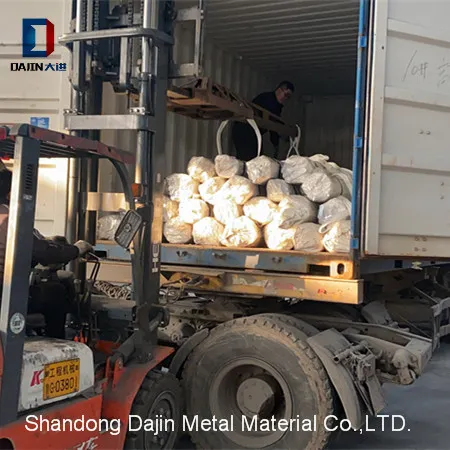

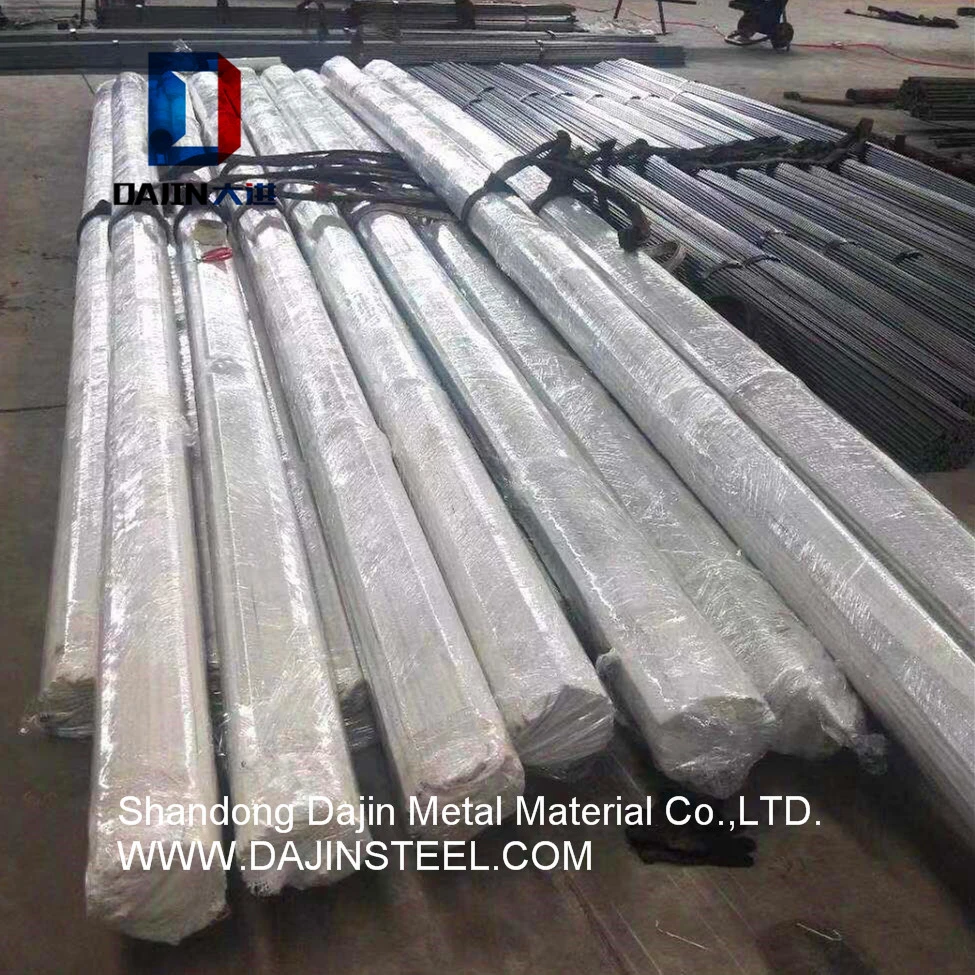

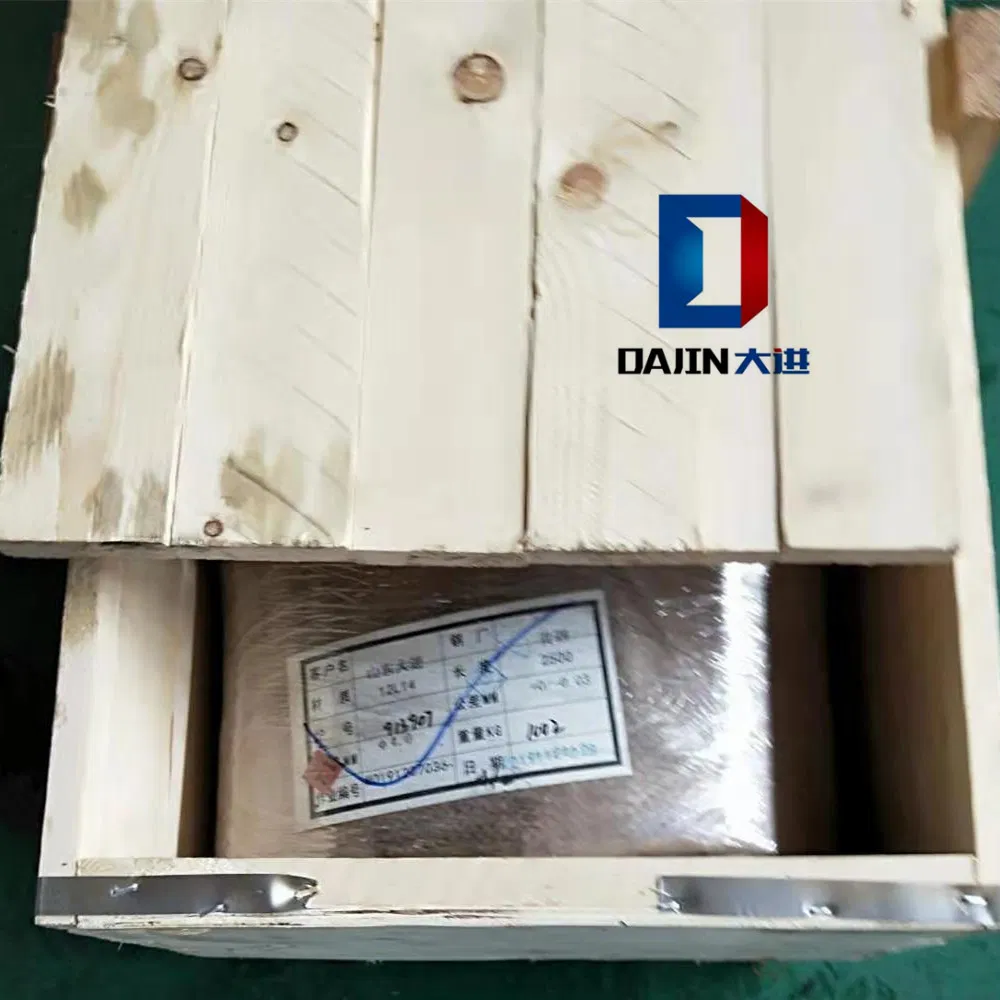

9. Steel bar Packing:
*Bars from different heats will not be mixed and dispatched.
*Bars will be bundles and securely metal strapped in 3 min places of the bar length and tagged properly.
*For further processing products such as cold drawn/peeled or heat treated goods, plastics bag wrapped or pallet loading is available according to customer's demands.
SAE1020 1018 Ss400 1215 Cold Drawn Round Hexagon Steel Bar

10.Delivery time of steel bar:
7-10days of stock,30 days after order confirmed of new material

11.Payment term:TT or LC

12.Free sample:Yes

13.steel bar Inspection: Spectral Tested, Microstructure Tested,Hardness Test,Macrostructure Test,UT test
SAE1020 1018 Ss400 1215 Cold Drawn Round Hexagon Steel Bar
