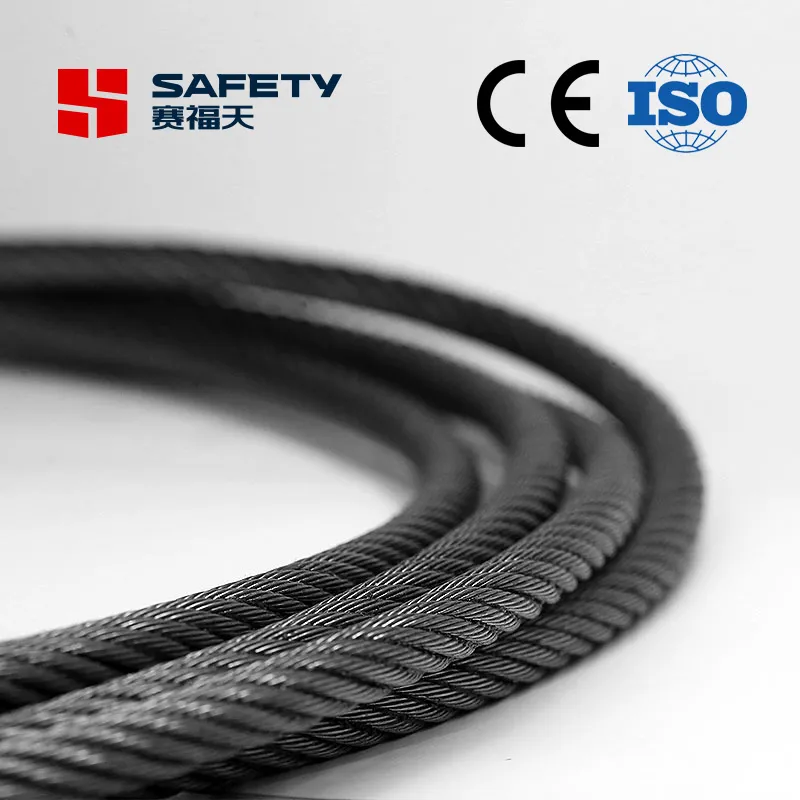

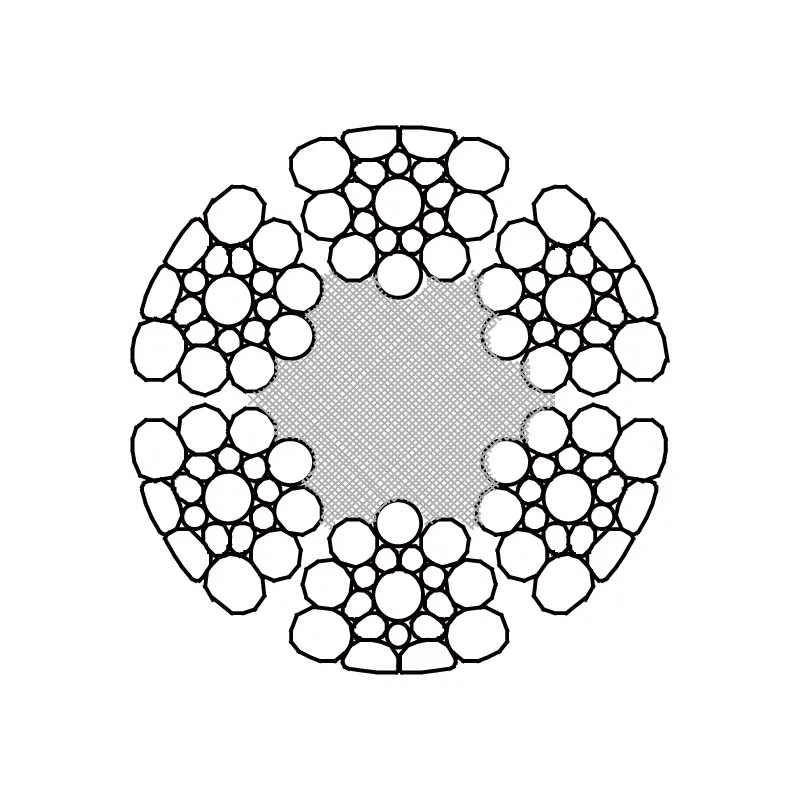

China Multi-Stranded Iron Spring K6X19s FC Iwrc 13mm 14mm 15mm 16mm 17mm 18mm 1960MPa Lifting Wire Rope Steel Cord for Well Service Lines Crane Fittings Australia

Product Description

Why us
Jiangsu Safety Wire Rope Co., Ltd. was established in June 2005, with a registered capital of 34 million USD, and 582 employees. We went public on Shanghai Stock Exchange in China on March 31, 2016 with the stock code: 603028. The factory covers an area of 102,000 square meters and has an annual output of 60,000 tons of steel wire ropes. Our market share & industry rankings for elevator wire ropes are among the top 3 in China.

With over 60 years of experience in manufacturing wire ropes, we offer the best performing wire ropes solutions for different application around the world maintaining the highest quality and safety standards. We are the first domestic enterprise to develop elevator wire ropes and now became the leading supplier of special steel wire ropes in China.

For more information

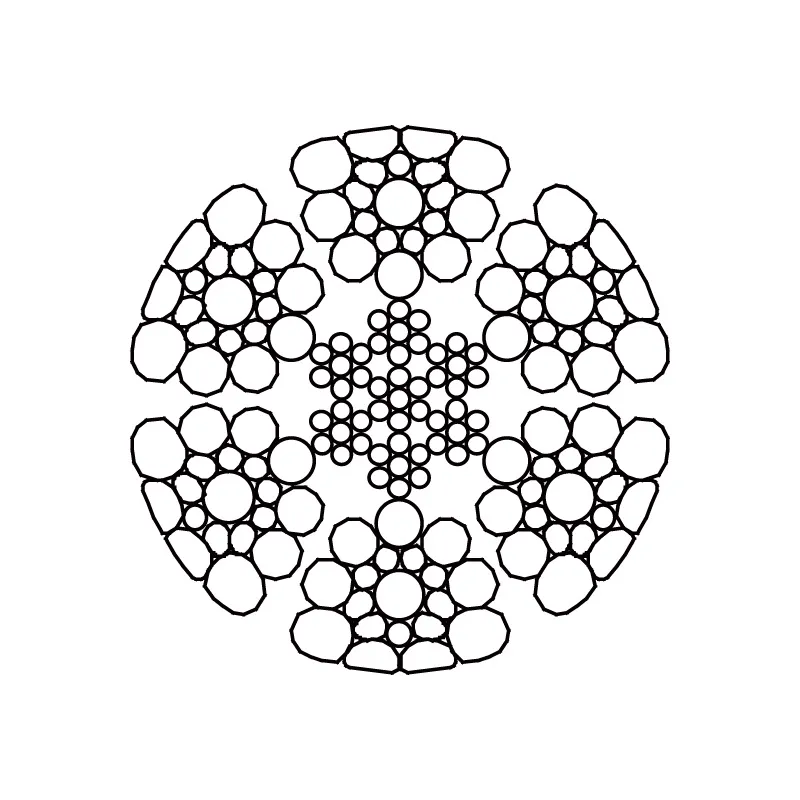

Multi-Stranded Iron Spring K6X19s FC Iwrc 13mm 14mm 15mm 16mm 17mm 18mm 1960MPa Lifting Wire Rope Steel Cord for Well Service Lines Crane Fittings Australia

Multi-Stranded Iron Spring K6X19s FC Iwrc 13mm 14mm 15mm 16mm 17mm 18mm 1960MPa Lifting Wire Rope Steel Cord for Well Service Lines Crane Fittings Australia

Specification (Standard: GB/T 8918)
For specification of other standards such as ANSI, BS, DIN, EN, JIS, ISO and so on please contact us.

Nominal diameter (mm)	Approx. weight (kg/100m)		Rope grades (MPa)
			1570		1670		1770		1870		1960
			Minimum breaking load (kN)
	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC	FC	WC
6	14.7	16.4	21.1	23.2	22.4	24.6	23.8	26.1	25.1	27.6	26.3	28.9
7	20.0	22.3	28.7	31.5	30.5	33.6	32.4	35.6	34.2	37.6	35.8	39.4
8	26.1	29.2	37.5	41.2	39.9	43.8	42.3	46.4	44.6	49.1	46.8	51.4
9	33.0	36.9	47.4	52.1	50.5	55.5	53.5	58.8	56.5	62.1	59.2	65.1
10	40.7	45.6	58.6	64.4	62.3	68.5	66.0	72.6	69.8	76.7	73.1	80.4
11	49.3	55.2	70.9	77.9	75.4	82.8	79.9	87.8	84.4	92.8	88.5	97.2
12	58.7	65.6	84.3	92.7	89.7	98.6	95.1	105	100	110	105	116
13	68.9	77.0	99.0	109	105	116	112	123	118	130	124	136
14	79.9	89.4	115	126	122	134	129	142	137	150	143	158
15	91.7	103	132	145	140	154	149	163	157	173	164	181
16	104	117	150	165	159	175	169	186	179	196	187	206
17	118	132	169	186	180	198	191	210	202	222	211	232
18	132	148	190	209	202	222	214	235	226	248	237	260
19	147	165	211	232	225	247	238	262	252	277	264	290
20	163	182	234	257	249	274	264	290	279	307	292	321
22	197	221	283	312	301	331	320	351	338	371	354	389
24	235	263	337	371	359	394	380	418	402	442	421	463
26	275	308	396	435	421	463	446	491	472	518	494	543
28	319	357	459	505	488	537	518	569	547	601	573	630
30	367	410	527	579	561	616	594	653	628	690	658	723
32	417	467	600	659	638	701	676	743	714	785	749	823
34	471	527	677	744	720	792	763	839	806	886	845	929
36	528	591	759	834	807	887	856	941	904	994	947	1040
38	588	658	846	930	899	989	953	1050	1010	1110	1060	1160
40	652	729	937	1030	997	1100	1060	1160	1120	1230	1170	1290
42	719	804	1030	1140	1100	1210	1160	1280	1230	1350	1290	1420
44	789	883	1130	1250	1210	1330	1280	1410	1350	1480	1420	1560
46	862	965	1240	1360	1320	1450	1400	1540	1480	1620	1550	1700
48	939	1050	1350	1480	1440	1580	1520	1670	1610	1770	1680	1850
50	1020	1140	1460	1610	1560	1710	1650	1810	1740	1920	1830	2010
52	1100	1230	1580	1740	1684	1850	1780	1960	1890	2070	1980	2170
54	1190	1330	1710	1880	1820	2000	1920	2120	2030	2240	2130	2340
56	1280	1430	1840	2020	1950	2150	2070	2280	2190	2400	2290	2520
58	1370	1530	1970	2170	2100	2300	2220	2440	2350	2580	2460	2700

Overview of SAFETY

Multi-Stranded Iron Spring K6X19s FC Iwrc 13mm 14mm 15mm 16mm 17mm 18mm 1960MPa Lifting Wire Rope Steel Cord for Well Service Lines Crane Fittings Australia

FAQ
1. Quality?
We focus on the manufacture of steel wire ropes for over 60 years and participated in the formulation of several important steel rope standards in China, such as GB/T 31979-2015, GB/T 29086-2012, GB/T 20118-2017, GB/T8903-2018. SAFETY's market share & industry rankings for elevator wire ropes are among the top 3 in the world. There is no need to worry about quality.

2. Price?
We provide high-quality products with moderate prices. A little higher prices bring you the better quality and service.

3. Customized?
Customizing products for special requirements is available, for example: strength/tensile, twist direction, diameter, material, surface coating, etc.

4. Delivery time?
seven days will be ok if wire ropes are in stock. If not, we need additional 30 days to produce your wire ropes.

5. Service
Our professional service team can provide installation guidance services and basic technical training on wire ropes if you need.
